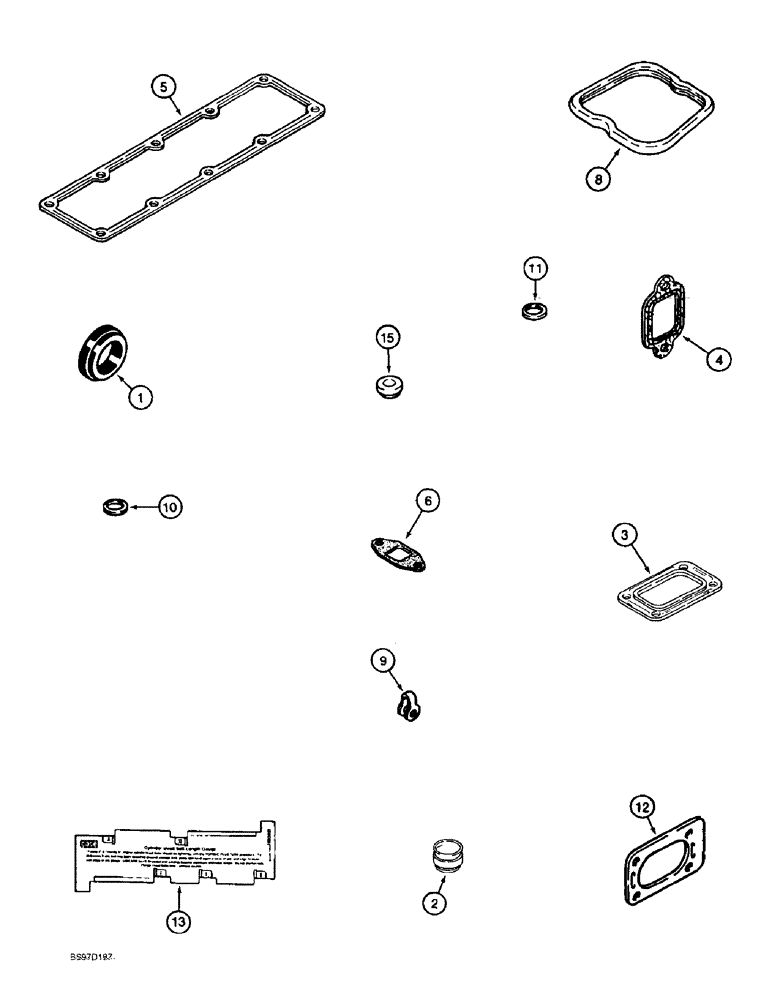

Запчасти Case 860 (2-48) - GASKET KIT - VALVE GRIND, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

A77870

SEAL PACKAGE

KIT - gasket, valve grind, Includes: Ref. 1 - 15

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, item 2, Figure 2-31A.

1шт.

1

J923331

GASKET

- thermostat housing

1шт.

2

J921640

SEAL

- valve, identified by color orange with silver band

8шт.

3

J919369

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

4

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

- intake manifold

1шт.

6

J931350

GASKET

- turbo oil drain tube

1шт.

8

J930906

GASKET

SEAL - rocker arm cover

4шт.

9

J903380

SEAL

- connector, fuel drain, manifold tube

4шт.

10

J906659

SEAL

- 7 mm injector tip

4шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING - sealing, Serial Range: body-nut

4шт.

12

J914856

GASKET,1.02mm Thk

- air crossover connection

1шт.

13

J823921

GAUGE

- cylinder head, bolt length

1шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

- noise, rocker arm cover, replaces J928406 isolator

4шт.
