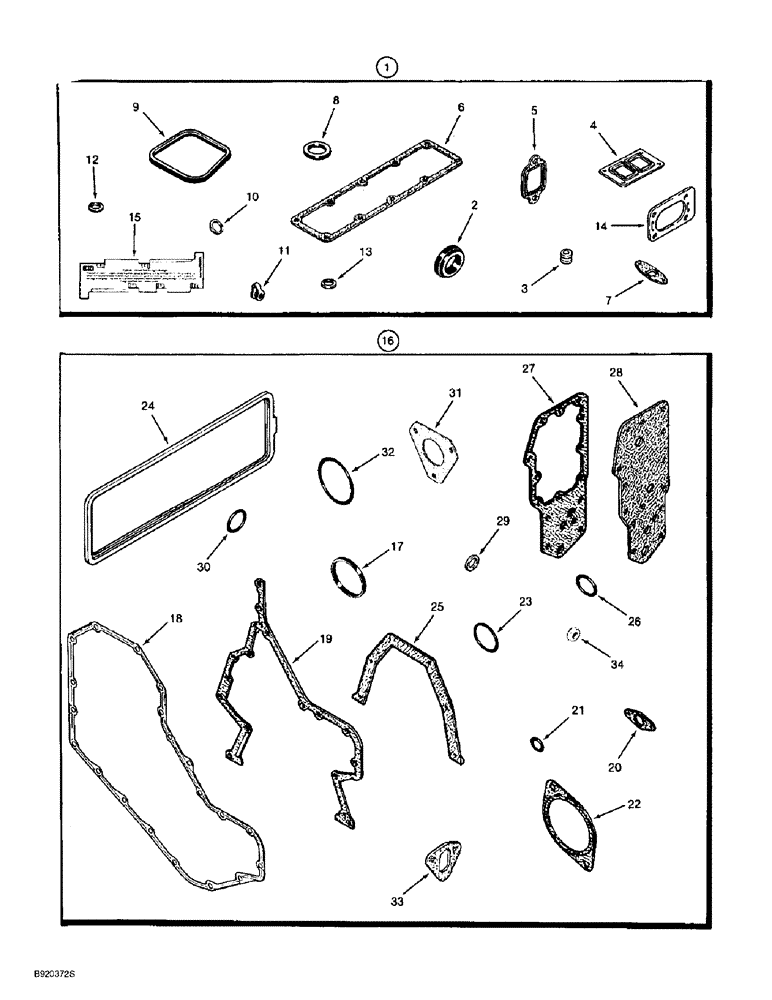

Запчасти Case 860 (2-46) - ENGINE GASKET KITS AND CYLINDER BLOCK KITS - 4T-390 ENGINE (02) - ENGINE

1

A77792

GASKET KIT

KIT - gasket, valve grind, Includes: Ref. 2 - 15

1шт.

When just the valve grind kit is used, also order the required cylinder head gasket, item 2, Figure 2-30.

1шт.

2

J923331

GASKET

- thermostat housing, replaces J920020 gasket

1шт.

3

J901097

SEAL

- and exhaust valve guides

8шт.

4

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

6

J914028

GASKET

- intake manifold

1шт.

7

J914388

GASKET

- turbo oil drain tube

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

1шт.

9

J902666

GASKET

SEAL - rocker arm cover

4шт.

10

J900808

SEAL

- injector nozzle, 9 mm injector tip, not used in this application

4шт.

11

J903380

SEAL

- connector, fuel return manifold tube

4шт.

12

J906659

SEAL

- 7 mm injector tip

4шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING - sealing, Serial Range: body-nut

4шт.

14

J914856

GASKET,1.02mm Thk

- air crossover connection

1шт.

15

J823921

GAUGE

- cylinder head, bolt length

1шт.

16

A77671

GASKET KIT

KIT - gasket, engine block, cylinder, Includes: Ref. 17 - 34

1шт.

For complete engine overhaul, order 1 cylinder block kit, 1 valve grind kit, 1 oil pan kit, Figure 2-28, front and rear crankshaft seal kit, Figure 2-40, and required cylinder head gasket, Figure 2-30.

1шт.

17

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover

1шт.

18

J914385

GASKET,1.02mm Thk

- front cover, front gear, Serial Range: cover-housing

1шт.

19

J916131

GASKET

- gear housing

1шт.

20

J905595

GASKET

- timing pin housing, not used in this application

1шт.

21

J913994

O-RING

- sealing, timing pin

1шт.

22

J919601

GASKET

- access cover plate

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

24

J922078

GASKET

- tappet cover, replaces J904056 gasket

1шт.

25

J914386

GASKET

- rear cover retainer, crankshaft

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID, water inlet connection

1шт.

27

J918256

GASKET

- cooler core, oil

1шт.

28

J918257

GASKET

- filter head

1шт.

29

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug, oil pan

1шт.

30

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 38 mm (1 1/2 inch) ID, engine oil fill tube

1шт.

31

J914389

GASKET

- pump mounting

1шт.

32

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel, Serial Range: housing-block

1шт.

33

J914304

GASKET

- mounting, fuel transfer pump

1шт.

34

J900267

SEAL

- cover bolt

4шт.
