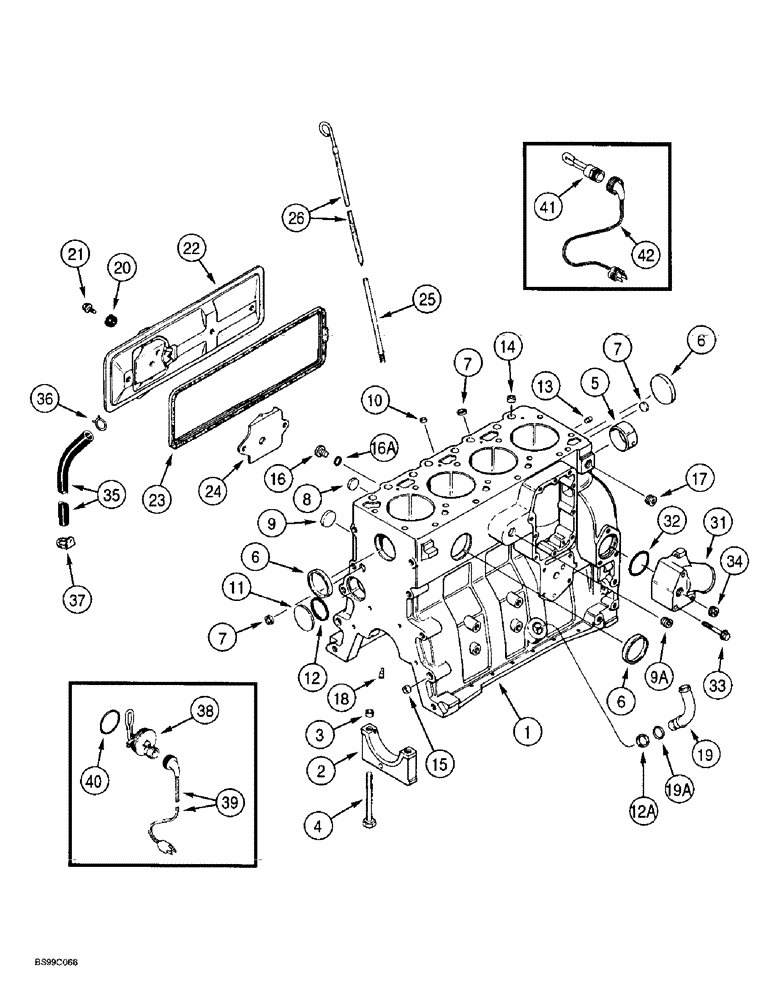

Запчасти Case 860 (2-39A) - CYLINDER BLOCK, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

235132A1

ENGINE ASSEMBLY - 4T-390 Emissions Certified, complete, for service order 234277A2 basic engine below

1шт.

The engine part number is stamped on a metal tag which is mounted on the front gear cover.

1шт.

234277A2

BASIC ENGINE

Includes: Ref. 1 - 8A; Incl. all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and

1шт.

234277A2R

REMAN-BASIC ENGINE

Front Cover For Inline Fuel Injection Pump. Includes: Ref. 1 - 8A; Incl. all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and

1шт.

234277A2C

CORE-BASIC ENGINE

Return Number

1шт.

J933649

SHORT ENGINE

BLOCK ASSEMBLY - short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 2 - 8A

1шт.

J933649R

SHORT ENGINE

BLOCK ASSEMBLY - short, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

J933649C

CORE-SHORT ENGINE

RETURN NUMBER - use this part number to return short block core for credit when using a remanufactured assembly

1шт.

1

87444172

BLOCK ASSY.

BLOCK ASSEMBLY - stripped, engine, order J933220 block hardware kit shown below also, Includes: Ref. 2 - 8A

1шт.

2

J903492

BEARING CAP

CAP - main bearing

5шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD, main bearing, Serial Range: cap-block

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

SCREW, , Main bearing cap, Special Hex Flg Hd, M12 x 1.5 x 119

10шт.

5

REF

INSTRUCTION

BUSHING - camshaft front, see figure 2-35A, item 2

1шт.

6

A77782

PLUG

PLUG - expansion, 58 mm OD

1шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, , Expansion Cup, 1", Stainless

2шт.

8a

NSS

NOT SOLD SEPARAT

PLUG - expansion, 37 mm OD, not shown installed in left side of blockif not equipped with side oil fill

1шт.

J933220

PACKAGE,SERVICE

KIT - block hardware, Includes: Ref. 9 - 18

1шт.

9

J900958

PLUG

PLUG - expansion, 32 mm OD

2шт.

9a

A77505

PLUG

PLUG - hex socket, 3/4 inch PT

1шт.

Install item 41 element in place of item 9A, A77505 plug

1шт.

10

J900955

PLUG

PLUG - expansion, 10 mm OD

1шт.

11

172599

PLUG,Exp, 2 3/8"

PLUG - expansion, Welch, 60 mm OD

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

O-RING - sealing, 57 mm ID

1шт.

12a

J920706

PLUG

PLUG expansion, 22 mm OD, not used in this application, item 19 J931973 turbocharger oil drain tube installed in this port

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long, locating

2шт.

14

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

15

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

PLUG - hex socket, 10 mm, Includes: Ref. 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

O-RING - 8.1 ID x 1.6 mm wide, Plug

1шт.

17

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

17a

J678921

PLUG

PLUG - hex socket, 14 mm, not shown, Includes: Ref. 17B

1шт.

Not used in this application

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

O-RING, , Sealing, Not shown 11.3MM ID x 2.2 Thk

1шт.

Not used in this application

1шт.

17c

J932296

PLUG

PLUG - timing sensor hole, not shown, Includes: Ref. 17D

1шт.

Not used in this application

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

O-RING - sealing, not shown

1шт.

Not used in this application

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT - heavy flex flange, 8 - 1.25 x 16 mm, Not shown

1шт.

Not used in this application

1шт.

18

J930139

NOZZLE CAP

NOZZLE - piston cooling

4шт.

19

J931973

TUBE,0.875" OD

TUBE - turbocharger oil drain

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

O-RING - sealing, 18 mm ID

1шт.

20

J900267

SEAL

SEAL - cover bolt

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

2шт.

22

J925680

COVER

COVER - tappet

1шт.

23

J283767

GASKET,7.4mm Thk

GASKET - tappet cover

1шт.

24

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

25

302061A1

TUBE,9.52 mm OD, 270, 124 mm Length

TUBE - dipstick, oil

1шт.

26

302062A1

DIPSTICK

DIPSTICK - oil level gauge

1шт.

31

J934877

HYD CONNECTOR

CONNECTION - water inlet, replaces J903102 connection

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 75 mm, class 10.9

3шт.

34

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

2шт.

35

J918612

TUBE,360.00 mm

Breather

1шт.

36

J904230

CLAMP,25.4mm

CLAMP - spring, hose

1шт.

37

J928989

CLIP

CLIP - retaining

1шт.

37a

J905369

PLUG

PLUG - expansion, 37 mm OD, installed in oil fill hole on left side of engine block, not shown

1шт.

196803A1

KIT

KIT - engine block heater, Includes: Ref. 38 - 40

1шт.

38

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 120 volt, 750 watt, block

1шт.

39

196466A1

ELECTRIC CABLE

CABLE - engine block heater

1шт.

40

J910517

O-RING

O-RING - heater sealing, engine block heater

1шт.

309651A1

KIT

KIT - engine block heater, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 120 volt, 750 watt, block

1шт.

Install item 41 element in place of item 9A, A77505 plug

1шт.

42

196466A1

ELECTRIC CABLE

CABLE - engine block heater

1шт.

A77887

PACKAGE,SERVICE

KIT - engine overhaul, not shown, Includes: Ref. 43 - 50

1шт.

43

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

KIT - standard, see figure 2-45A, engine overhaul kit

4шт.

44

J919053

PISTON PIN

PIN - piston, See page 2-45A, engine overhaul kit

4шт.

45

A77465

BEARING SET

KIT - upper and lower set, standard, see figure 2-41A, engine overhaul kit

4шт.

46

A77405

CRANKSHAFT BEARING

BEARING - main, upper and lower set, see figure 2-41A, engine overhaul kit

4шт.

47

A77896

BEARING SET

BEARING - main thrust, upper and lower set, standard, see figure 2-41A, engine overhaul kit

1шт.

48

A77870

SEAL PACKAGE

KIT - valve grind, see figure 2-48, engine overhaul kit

1шт.

49

J283333

CYLINDER HEAD GASKET,2.32mm Thk

GASKET - head, standard, see figure 2-31A, engine overhaul kit

1шт.

50

A77673

GASKET KIT

KIT - oil pan, see figure 2-29A, engine overhaul kit

1шт.
