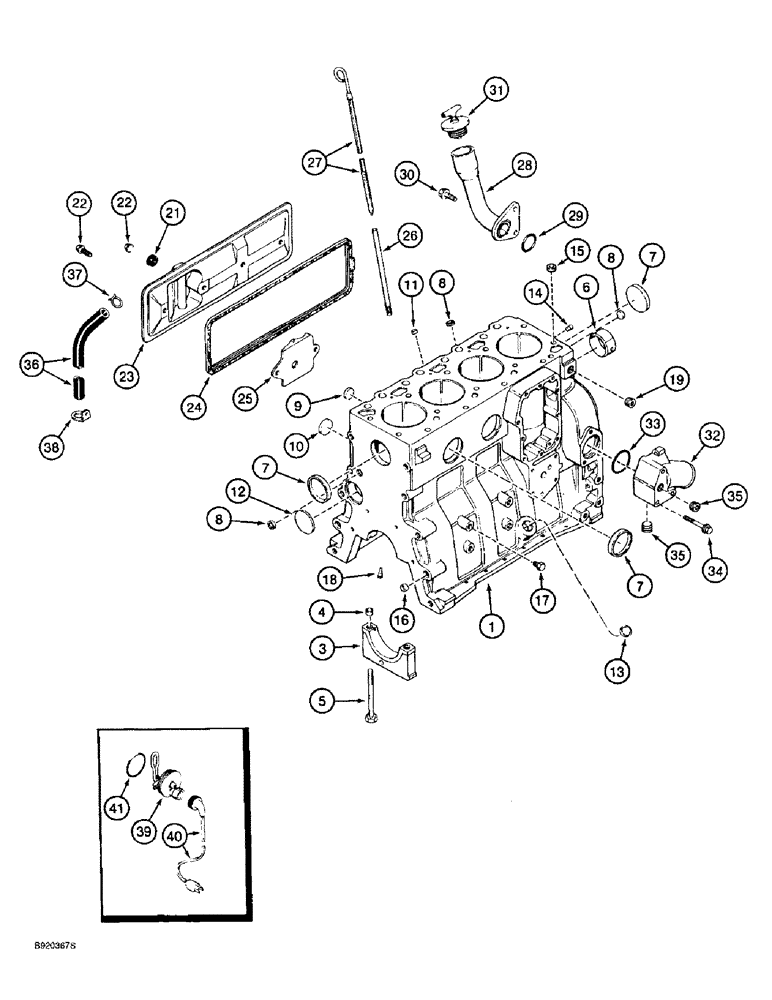

Запчасти Case 860 (2-36) - CYLINDER BLOCK, 4T-390 ENGINE (02) - ENGINE

1989133C1

ENGINE ASSEMBLY - 4T-390, complete, new

1шт.

Includes all parts except starter, alternator, fan, fan belt, fan belt pulley, air cleaner, muffler and exhaust pipe, for service order 1989092C2 basic engine shown below

1шт.

1989092C2

BASIC ENGINE

ENGINE ASSEMBLY - basic

1шт.

Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and aftercooler

1шт.

1989092C3R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

1989092C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

J920387

SKELETON ENGINE

BLOCK ASSEMBLY - short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings

1шт.

Order J920399 hardware kit when ordering J920387 block assembly or J916254 stripped block.

1шт.

JR933236

REMAN-SHORT ENGINE

1шт.

JC933236

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J916254

BLOCK ASSY.

BLOCK ASSY - stripped, engine, replaces A77757 block assembly, Includes: Ref. 3 - 9

1шт.

Order J920399 hardware kit when ordering J920387 block assembly or J916254 stripped block.

1шт.

3

J900967

BEARING CAP

CAP - main bearing

5шт.

4

J900068

BEARING WASHER

RING - dowel, 18 mm OD

10шт.

5

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - main bearing cap, special

10шт.

6

REF

INSTRUCTION

BUSHING - camshaft, front, see figure 2-34, item 2

1шт.

7

A77782

PLUG

PLUG - expansion, 58 mm OD

4шт.

8

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

9

41-1616

PLUG,Cup, 1", Stainless

PLUG, Cup, 1", Stainless

2шт.

PJ920399

SHIN

KIT - block hardware, Includes: Ref. 10 - 19

1шт.

Order J920399 hardware kit when ordering J920387 block assembly or J916254 stripped block.

1шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

2шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

1шт.

12

J900687

PLUG

PLUG - expansion, (Welch), 60 mm OD

1шт.

13

A77439

PLUG

PLUG - expansion, 22 mm OD, camshaft

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long, locating

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

2шт.

18

J919002

NOZZLE CAP

NOZZLE - piston cooling

6шт.

19

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

21

J900267

SEAL

SEAL - cover bolt

4шт.

22

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 20 mm

4шт.

23

J925680

COVER

COVER tappet, replaces J905023 cover

1шт.

24

J922078

GASKET

GASKET - tappet cover, replaces J904056 gasket

1шт.

25

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

26

J905779

TUBE,9.52 mm OD x 228 mm L

TUBE - dipstick

1шт.

If they have the emissions certified engine, there is a tube (302061A1) on figure 2-39A and that is curved according to drawing?

1шт.

27

J905781

DIPSTICK

DIPSTICK - oil level gauge

1шт.

28

J905440

TUBE

TUBE - oil fill

1шт.

29

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 38 mm (1-1/2 inch) ID

1шт.

30

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT - heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

31

A77424

FILLER CAP

CAP - oil fill tube

1шт.

32

J903102

CONNECTION

CONNECTION - water inlet

1шт.

33

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

34

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

M10 x 75; 10.9

3шт.

35

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

2шт.

36

J906593

HOSE

Breather

1шт.

37

J904230

CLAMP,25.4mm

CLAMP - spring, hose

1шт.

38

J909670

CLIP

CLIP - retaining

1шт.

A77634

KIT

KIT - engine block heater, Includes: Ref. 39 - 41

1шт.

39

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 120 volt, block

1шт.

40

J905113

CABLE

CABLE - engine block heater

1шт.

41

J910517

O-RING

O-RING - heater sealing, engine block heater

1шт.
