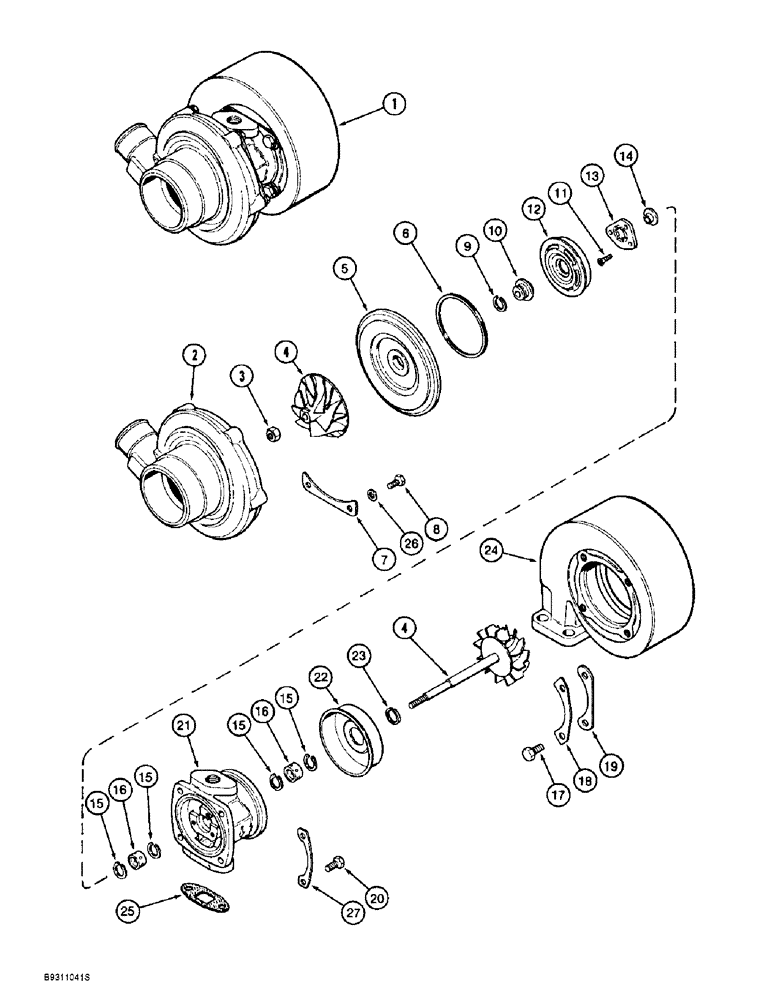

Запчасти Case 860 (2-24) - TURBOCHARGER ASSEMBLY - 4T-390 ENGINE (02) - ENGINE

1

J919135

TURBOCHARGER

TURBOCHARGER ASSEMBLY - new, Includes: Ref. 2 - 27

1шт.

1

JR802290

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

JC535381

CORE-TURBOCHARGER

Return Part Number

1шт.

1

JR919135

REMAN-TURBOCHARGER

Turbocharger Assembly\r\n - Remanufactured, Includes: Ref. 2 - 27

1шт.

1

JC919135

CORE-TURBOCHARGER

Return Part Number\r\n - Use this part number to return turbocharger core for credit when using a remanufactured assembly

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - hex, lock

1шт.

Part of Overhaul Kit P/N J904772

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR - turbocharger, includes both halves

1шт.

5

NSS

NOT SOLD SEPARAT

DIFFUSER - compressor

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

Part of Overhaul Kit P/N J904772

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - diffuser clamping

3шт.

8

NSS

NOT SOLD SEPARAT

SCREW - cap

6шт.

Part of Overhaul Kit P/N J904772

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - split ring, compressor

1шт.

Part of Overhaul Kit P/N J904772

1шт.

10

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - flat head Torx

3шт.

Part of Overhaul Kit P/N J904772

1шт.

12

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

Part of Overhaul Kit P/N J904772

1шт.

14

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

15

NSS

NOT SOLD SEPARAT

RING - snap, retaining

4шт.

Part of Overhaul Kit P/N J904772

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING - impeller shaft

2шт.

Part of Overhaul Kit P/N J904772

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT - plate retaining

4шт.

Part of Overhaul Kit P/N J904772

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine housing

2шт.

Part of Overhaul Kit P/N J904772

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE - clamping, turbine housing

2шт.

20

NSS

NOT SOLD SEPARAT

BOLT ASSEMBLY - hex, lock, includes washer

4шт.

Part of Overhaul Kit P/N J904772

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - turbine bearing

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - piston ring, turbine

1шт.

Part of Overhaul Kit P/N J904772

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - turbine

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - lock

6шт.

Part of Overhaul Kit P/N J904772

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine

2шт.

Part of Overhaul Kit P/N J904772

1шт.

J904772

PACKAGE, REPAIR

KIT - overhaul, turbocharger, Includes: Ref. 3, 6, 8, 9, 11, 13, 15, 16, 17, 18, 20, 23, 26, 27

1шт.
