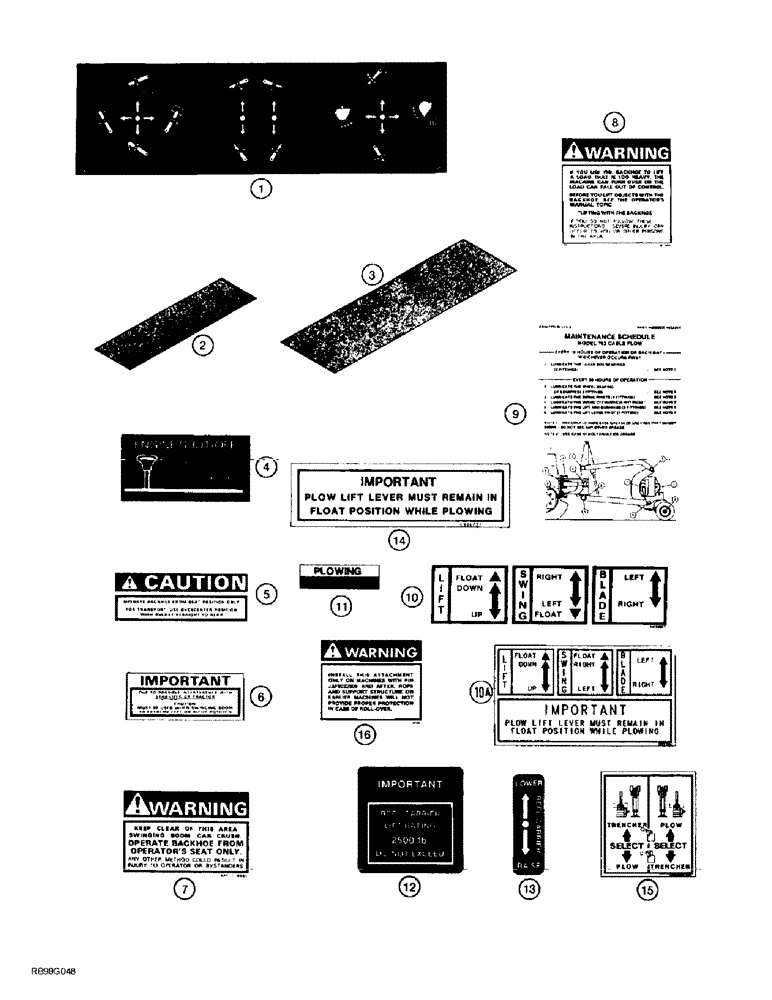

Запчасти Case 860 (9-122) - BACKHOE, PLOW, REEL CARRIER AND QUAD DECALS (09) - CHASSIS/ATTACHMENTS

1

D123978

DECAL

- backhoe control pattern, two lever, brown with white symbols

1шт.

1

179079A1

DECAL

- backhoe control pattern, two lever, black with white symbols

1шт.

2

H386334

FLOOR MAT

STRIP - anti-skid, backhoe access steps

3шт.

3

D55216

PAD,2" x 9"

PAD - anti-skid

2шт.

4

H434268

DECAL

- engine shut-off

1шт.

5

321-3056

DECAL

- Caution, operate backhoe from seat position only

1шт.

6

321-3058

DECAL

- Important, due to possible interference with stabilizer or tractor

1шт.

7

321-4481

DECAL

- Warning, keep clear of this area, swinging boom can crush

2шт.

8

321-6046

WARNING DECAL

DECAL, WARNING, If you use the backhoe to lift a load that is too heavy

1шт.

9

H435214

DECAL

- maintenance schedule, plow and reel carriers

1шт.

10

H434977

DECAL

- plow control pattern, lift/swing/blade, if used, reel carriers

1шт.

10a

131939A1

DECAL

- Important, plow lift lever must remain in float position, plow control pattern, lift/swing/blade, if used, reel carriers

1шт.

11

107140A1

DECAL

- plowing, plow speed control, brown letters, reel carriers

1шт.

11

178943A1

DECAL

- plowing, plow speed control, black letters, reel carriers

1шт.

12

H435204

DECAL

- Important, reel carrier lift rating, 2500 lb, brown with white letters, plow

3шт.

12

192705A1

DECAL

- Important, reel carrier lift rating, 2500 lb, black with white letters, plow

3шт.

13

H435210

DECAL

- reel carrier control pattern, plow

1шт.

14

H436751

DECAL

- Important, plow lift lever, brown with white letters, reel carriers

1шт.

14

178939A1

DECAL

- Important, plow lift lever, black with white letters, reel carriers

1шт.

15

H435572

DECAL

- select, trencher/plow, brown with white letters, quad

1шт.

15

179080A1

DECAL

- select, trencher/plow, black with white letters, quad

1шт.
