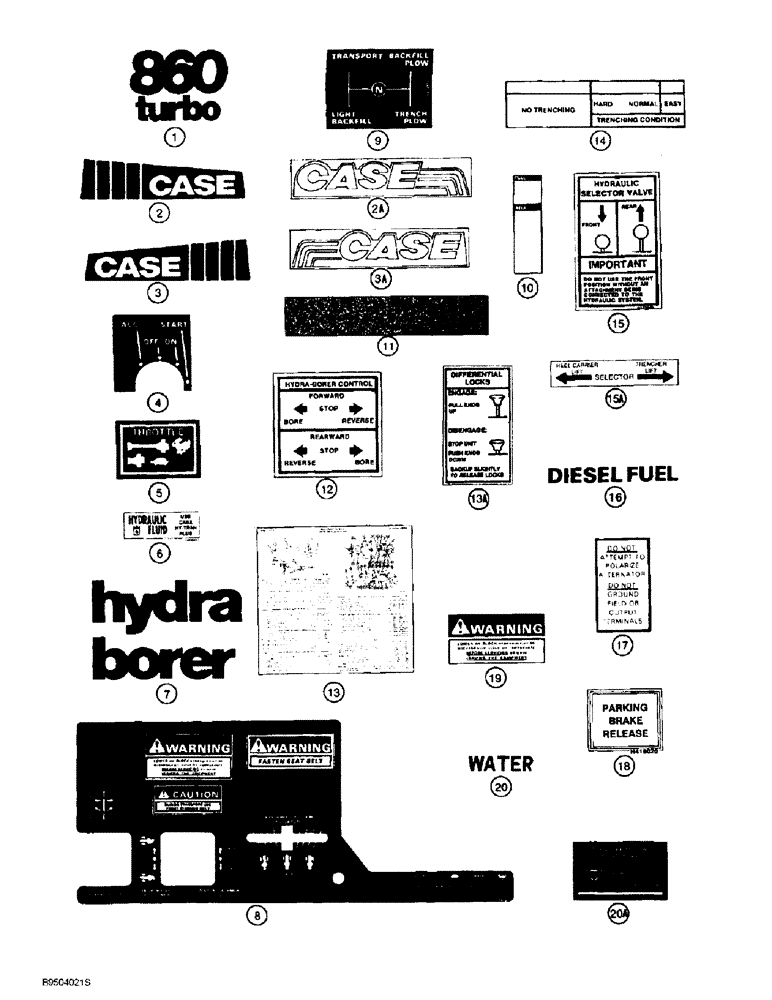

Запчасти Case 860 (9-118) - DECALS (09) - CHASSIS/ATTACHMENTS

1

H438641

DECAL

- 860 turbo, brown

2шт.

1

179121A1

DECAL

- 860 turbo, gray

2шт.

2

101734A1

DECAL

- Case, with treads, right-hand, brown

1шт.

2a

179222A2

DECAL

- Case, with stripes, right-hand, gray

1шт.

3

101735A1

DECAL

- Case, with treads, left-hand, brown

1шт.

3a

179221A2

DECAL

- Case, with stripes, left-hand, gray

1шт.

4

D123946

DECAL

- ignition switch pattern, brown with white letters

1шт.

4

140219A2

DECAL

- ignition switch pattern, black with white letters

1шт.

5

321-5288

DECAL

- throttle

1шт.

6

H438541

DECAL

- hydraulic fluid, use Case hy-tran plus

1шт.

7

H427880

DECAL

- hydra-borer

1шт.

8

121910A1

DECAL

- side console, attachments, rear wheel positioner and rear wheel position indicator, brown with white letters and symbols, also includes items 19, 21, and 32

1шт.

121910A1 and 178947A1 (item 8) are special one-piece decals that also includes items 19, 21, and 32 which are listed separately for reference purposes only. See figure 9-122 for backhoe, plow, reel carrier, and quad decals.

1шт.

8

178947A1

DECAL

- side console, attachments, rear wheel positioner and rear wheel position indicator, black with white letters and symbols, also includes items 19, 21, and 32

1шт.

121910A1 and 178947A1 (item 8) are special one-piece decals that also includes items 19, 21, and 32 which are listed separately for reference purposes only. See figure 9-122 for backhoe, plow, reel carrier, and quad decals.

1шт.

9

H433979

DECAL

- shift pattern, brown with white letters

1шт.

9

178938A1

DECAL

- shift pattern, black with white letters

1шт.

10

109715A1

DECAL

- hydraulic oil reservoir level

1шт.

11

H433994

BAND

STRIP - anti-skid, bulk, 690 mm (27 inch) long, fuel tank and battery box cover

4шт.

12

H434251

DECAL

- hydra-borer control

1шт.

13

8-80922

DECAL

- maintenance schedule

1шт.

13a

117977A1

DECAL

- differential lock, brown with white letters, if used

1шт.

13a

178942A1

DECAL

- differential lock, black with white letters, if used

1шт.

14

H434352

DECAL

- trenching chainline speed control pattern, brown letters

1шт.

14

178936A1

DECAL

- trenching chainline speed control pattern, black letters

1шт.

15

H434356

DECAL

- hydraulic selector valve, brown with white letters

1шт.

15

179992A1

DECAL

- hydraulic selector valve, black with white letters

1шт.

15a

H439403

DECAL

- selector, reel carrier lift/trencher lift, brown with white letters

1шт.

15a

180466A1

DECAL

- selector, reel carrier lift/trencher lift, black with white letters

1шт.

16

321-230

DECAL

- diesel fuel

1шт.

17

321-1061

DECAL

- do not attempt to polarize alternator

1шт.

18

H418020

DECAL

- parking brake release

1шт.

19

321-3042

DECAL

- Warning, lower or block hydraulically or mechanically, this decal is a part of 121910A1 and 178941A1 decals, item 8

1шт.

20

321-719

DECAL

- water

1шт.

20a

H439277

DECAL

- trencher motor speed range, brown with white letters

1шт.

20a

178935A1

DECAL

- trencher motor speed range, black with white letters

1шт.
