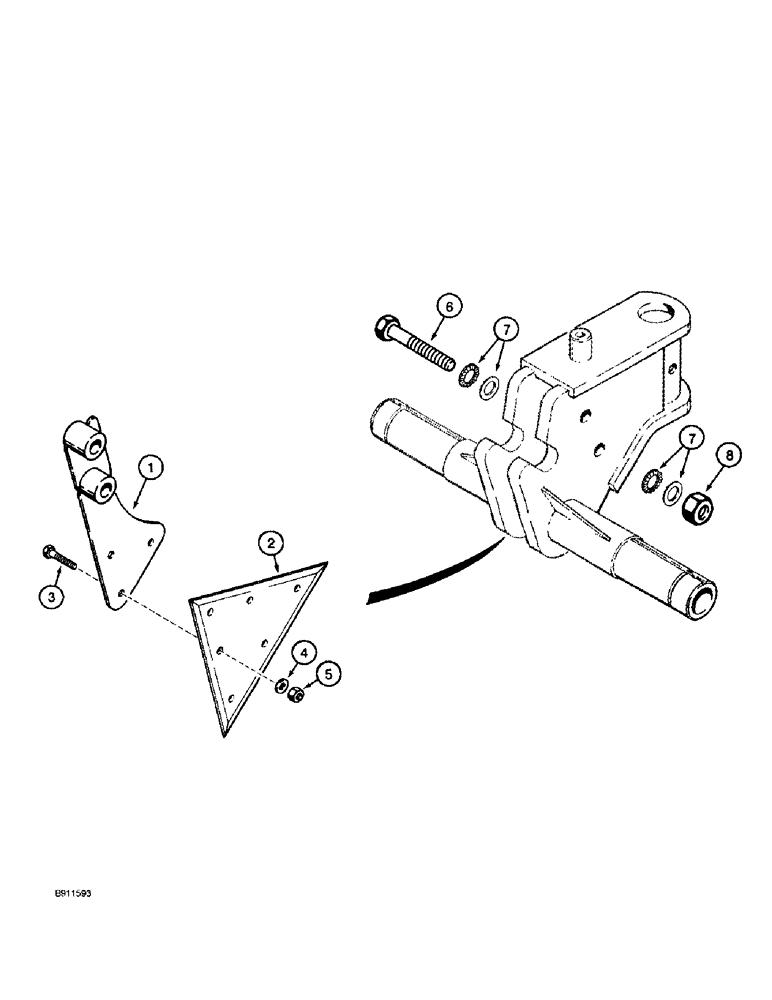

Запчасти Case 860 (9-116) - SOD CUTTER (09) - CHASSIS/ATTACHMENTS

1

H673122

MOUNTING PARTS

BRACKET - mounting, sod cutter blade, see Figure 9-106, Ref. 9 - 11, for plow blade mounting bracket (H673796)

1шт.

2

H434907

HALF BLADE

BLADE - sod cutter

1шт.

3

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

3шт.

4

H274894

WASHER

- flat, special

3шт.

5

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

3шт.

6

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

- hex, 1 NC x 6 inch

2шт.

7

H435357

WASHER

- disc-locking, special

4шт.

8

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

2шт.
