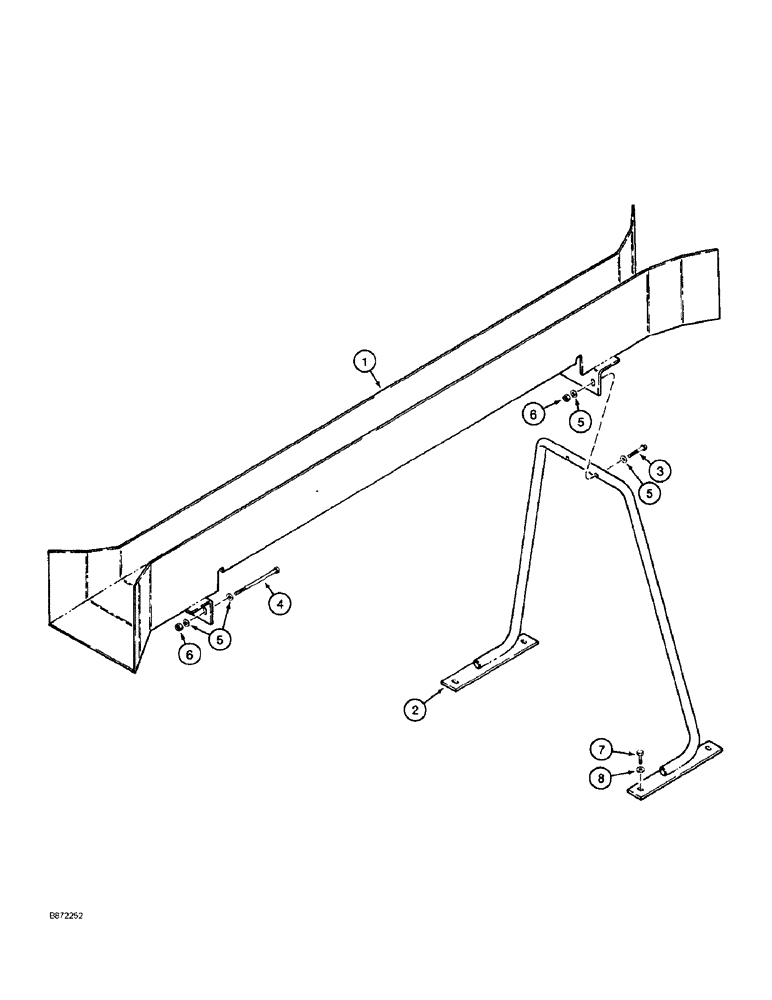

Запчасти Case 860 (9-114) - UPPER CABLE GUIDE - USED WITH REEL CARRIER (09) - CHASSIS/ATTACHMENTS

1

H672787

TROUGH

GUIDE - cable, upper

1шт.

2

H672798

SUPPORT TUBE,674 mm L

SUPPORT - front, cable guide, bolts to hood

1шт.

3

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

4

413-692

BOLT,Hex, 3/8" - 16 x 5-3/4", Gr 5

- hex, 3/8 NC x 5-3/4 inch

2шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

8шт.

6

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, existing hood mounting hardware

4шт.

8

H426775

WASHER

- flat, special, hardened, existing hood mounting hardware

4шт.
