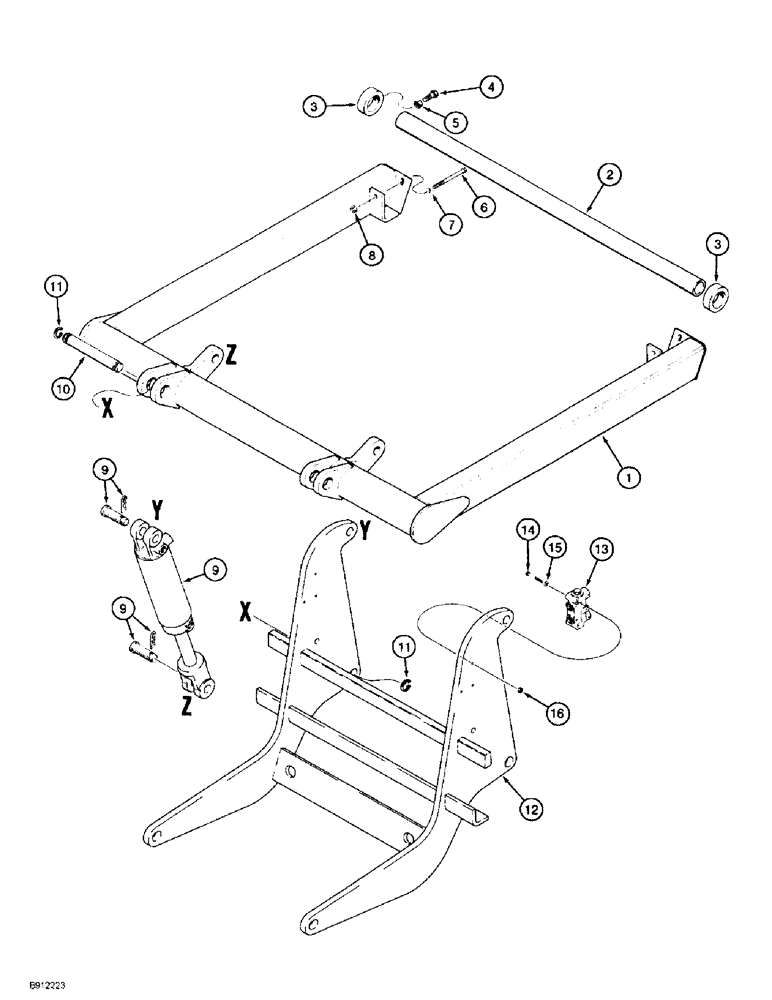

Запчасти Case 860 (9-112) - REEL CARRIER (09) - CHASSIS/ATTACHMENTS

1

H674972

ARM

FRAME - reel carrier

1шт.

2

H434806

SPINDLE

SHAFT - reel carrier

1шт.

3

H434807

COLLAR

- reel carrier shaft

2шт.

4

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

5

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC

2шт.

6

413-684

BOLT,Hex, 3/8" - 16 x 5-1/4", Gr 5

- hex, 3/8 NC x 5-1/4 inch

2шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

8

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

9

101644A1

CYLINDER

ASSEMBLY - 76 (3) ID x 203 mm (8 inch) stroke, reel carrier lift , parts list Figure 8-068

2шт.

10

H434262

PIN

- reel carrier frame to counterweight frame

2шт.

11

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

4шт.

12

H674971

CHASSIS

FRAME - counterweight and reel carrier mounting, see Figure 9-018 for frame to prime mover mounting hardware

1шт.

13

H672547

VALVE

ASSEMBLY - lockout, reel carrier, parts list Figure 5-20

1шт.

14

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

2шт.

15

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch, hardened

2шт.

16

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.
