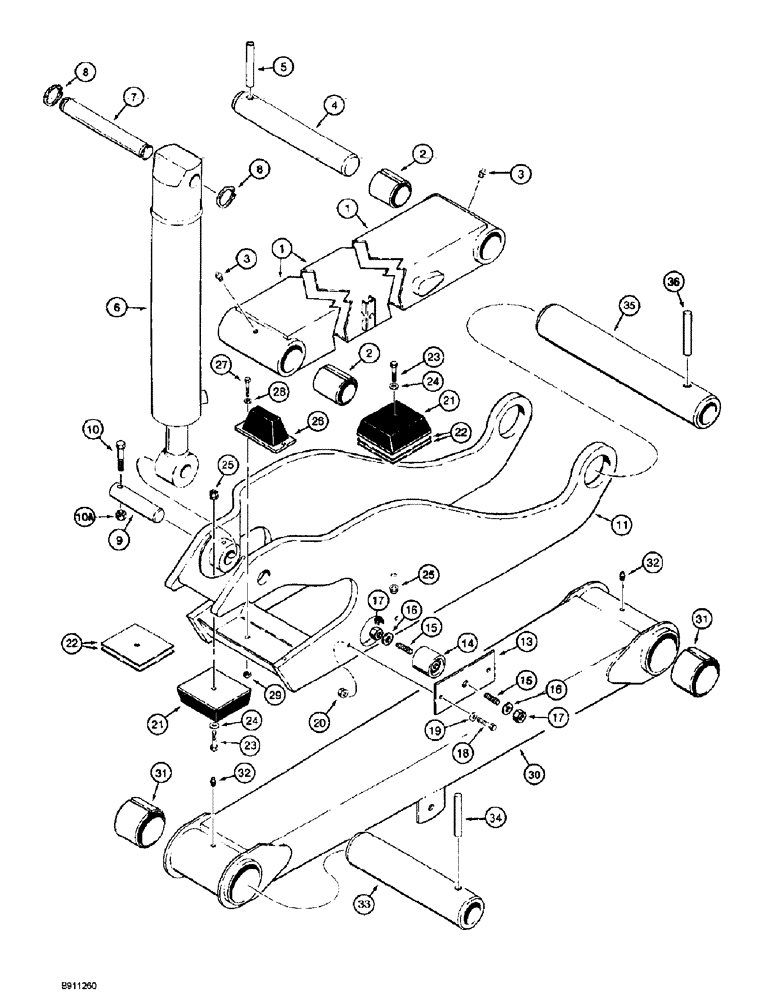

Запчасти Case 860 (9-104) - PLOW LIFT ARMS AND MOUNTING - PLOWS WITH CLOSED LIFT CRADLE (09) - CHASSIS/ATTACHMENTS

H673808

ARM

ASSEMBLY - plow lift, upper, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

ARM - plow lift, upper

1шт.

2

H434904

BUSHING

- plow lift arm

4шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

4

H436862

PIN

- upper plow lift arm

2шт.

5

38-34064

PIN,5/8" x 4", Coiled

2шт.

6

H673790

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 461 mm (16-3/8 inch) stroke, plow lift, parts list Figure 8-106

1шт.

7

H434493

PIN

- plow lift cylinder, closed end

1шт.

8

103-16125

SNAP RING,#125, Ext

Ring, Snap, , Plow lift cylinder pin #125, Ext

2шт.

9

H436865

PIN

- plow lift cylinder, rod end

1шт.

10

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

10a

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

11

H673899

CRADLE

- plow lift

1шт.

13

H438539

LARGE PLATE

PLATE - mounting, bumper

2шт.

14

H438533

ISOLATOR

BUMPER - rubber, lift arm, round

2шт.

15

H438537

STUD

- 1/2 NC x 1-1/2 inch

4шт.

16

H274894

WASHER

- flat, special

4шт.

17

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

18

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

19

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

20

231-5146

FLANGE NUT,3/8"-16

4шт.

21

D90990

GUARD

BUMPER - rubber, lift arm, rectangular, with single mounting hole

2шт.

22

H438536

SHIM,1.50mm Thk

Bumper, Used under lower item 21 bumper 1.50mm Thk

1шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

24

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

25

231-5146

FLANGE NUT,3/8"-16

2шт.

26

H434733

STOP

BUMPER - rubber, plow lift arm, rectangular, with dual mounting holes

1шт.

27

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

28

H426775

WASHER

- flat, special, hardened

2шт.

29

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

H673809

ARM

ASSEMBLY - plow lift, lower, Includes: Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

ARM - plow lift, lower

1шт.

31

H434903

BUSHING

- plow lift arm

4шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

33

H436864

PIN

- lower plow lift arm, rear

1шт.

34

38-34064

PIN,5/8" x 4", Coiled

1шт.

35

H436863

PIN

- lower plow lift arm, front

1шт.

36

38-34064

PIN,5/8" x 4", Coiled

1шт.
