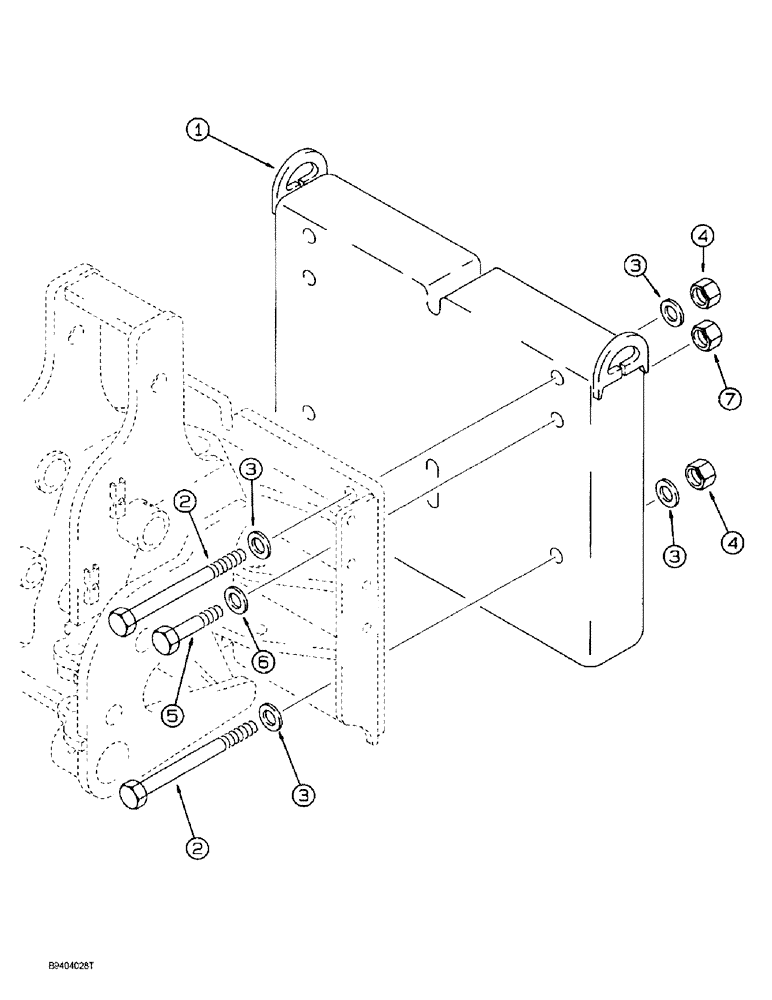

Запчасти Case 860 (9-101A) - PLOW ATTACHMENT ADAPTER (09) - CHASSIS/ATTACHMENTS

1

112447A1

ADAPTER

- plow attachment

1шт.

2

413-16136

BOLT,Hex, 1" - 8 x 8-1/2", Gr 5

- hex, 1 NC x 8-1/2 inch

6шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch, included in basic plow attachment

12шт.

4

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, , Included in basic plow attachment 1"-8, GC

6шт.

5

413-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

- hex, 1 NC x 3-1/2 inch, included in basic plow attachment

2шт.

6

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

2шт.

7

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

2шт.
