(9-100) - HYDRA-BORER COUPLER AND BORING ATTACHMENTS - CONTINUED

Запчасти Case 860 (9-100) - HYDRA-BORER COUPLER AND BORING ATTACHMENTS - CONTINUED (09) - CHASSIS/ATTACHMENTS

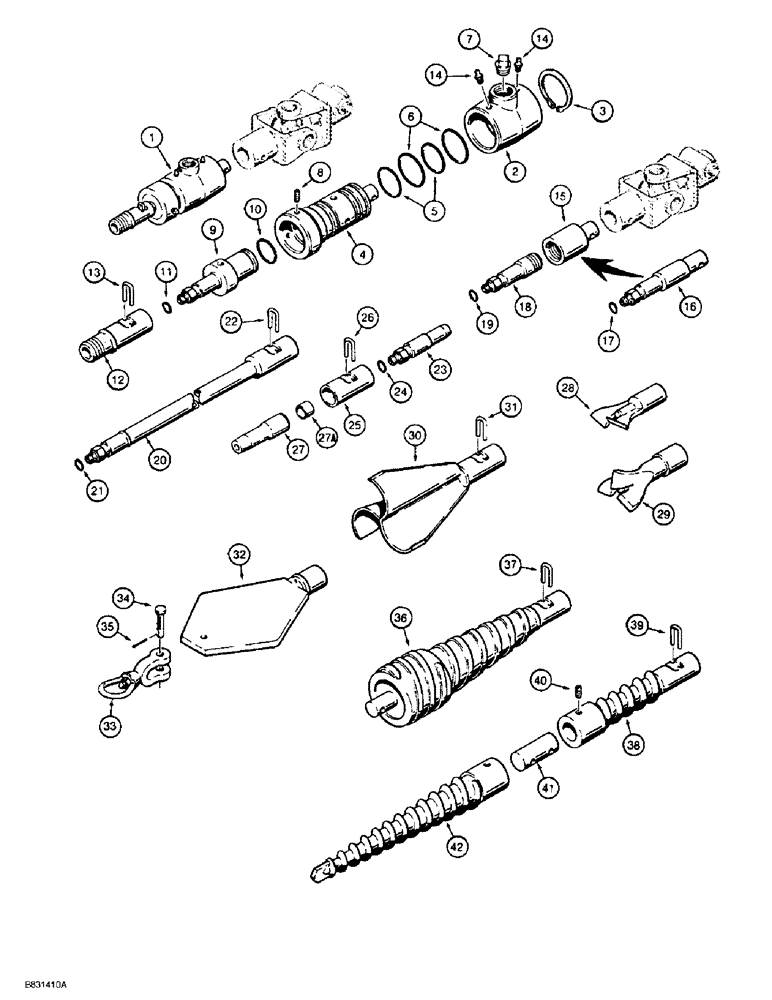

Схема запчастей Case 860 - (9-100) - HYDRA-BORER COUPLER AND BORING ATTACHMENTS - CONTINUED (09) - CHASSIS/ATTACHMENTS
9
3
6
29
1
2
28
16
18
34
36
11
17
26
41
42
24
21
22
14
12
38
5
13
39
4
15
25
19
32
23
30
37
20
31
35
10
14
7
27a
40
33
8
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

28

H518837

BIT

- drill, two blade, 2 inch blade dia x 1 inch female PT

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figures 9-096 and 9-098 for additional parts.

1шт.

28

H518910

BIT

- drill, two blade, 3 inch blade dia x 1 inch female PT

1шт.

29

H519249

BIT

- drill, three blade, 3 inch blade dia x 1 inch female PT

1шт.

30

H522441

REAMER

BACKREAMER - quick lock female, 8 inch

1шт.

30

H522466

REAMER

BACKREAMER - quick lock female, 12 inch

1шт.

31

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figures 9-096 and 9-098 for additional parts.

1шт.

32

H519504

REAMER

- fish plate, 4 inch

1шт.

32

H519652

REAMER

- fish plate, 6 inch

1шт.

32

H528497

REAMER

- fish plate, 8 inch

1шт.

33

H88195

FASTENER

SWIVEL - reamer

1шт.

34

H32284

AXLE PIN

PIN - clevis, 3/8 x 1-3/4 inch long, special

1шт.

35

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

36

H522409

REAMER

- compaction, quick lock female, 3-3/4 inch

1шт.

37

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figures 9-096 and 9-098 for additional parts.

1шт.

38

H522433

BIT

- compaction, quick lock female, 2 inch

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figures 9-096 and 9-098 for additional parts.

1шт.

39

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figures 9-096 and 9-098 for additional parts.

1шт.

40

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

BOLT - hex socket, 3/8 NC x 1-3/4 inch

2шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figures 9-096 and 9-098 for additional parts.

1шт.

41

H85233

COUPLING

COUPLER - bit

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figures 9-096 and 9-098 for additional parts.

1шт.

42

H84988

BIT

- compaction, end, 2 inch

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figures 9-096 and 9-098 for additional parts.

1шт.
