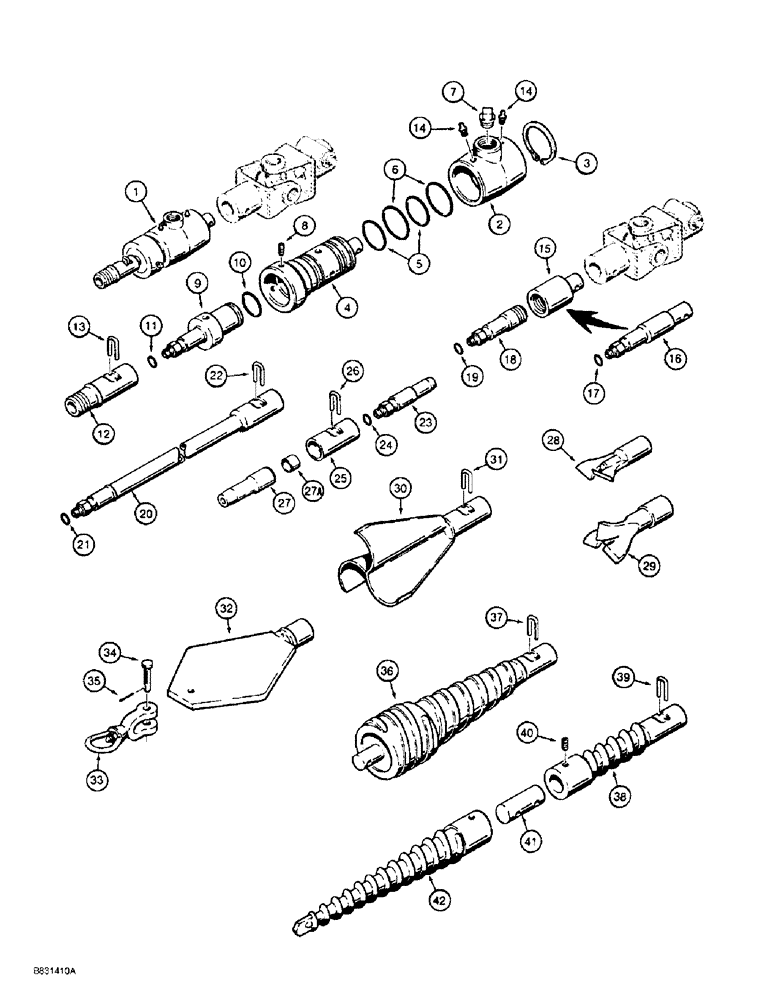

Запчасти Case 860 (9-098) - HYDRA-BORER COUPLER AND BORING ATTACHMENTS (09) - CHASSIS/ATTACHMENTS

1

H522367

COUPLING

COUPLER ASSEMBLY - water, wet boring, attaches to U joint on gearbox

1шт.

2

H84228

RING

BODY - coupler

1шт.

3

103-11225

SNAP RING,#225, Ext

Ring, Snap, , Coupler #225, Ext

1шт.

4

H84236

COUPLING

COUPLER - water

1шт.

5

364108R1

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

RING - seal backup

2шт.

6

H749317

OIL SEAL

SEAL - coupler

2шт.

7

353-207

PLUG,Sq Drive, 3/4"-14 NPT

- square drive, 3/4 inch PT, used for dry boring, if used

1шт.

8

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 NC x 3/4 inch, cup point

3шт.

9

H522359

ADAPTER

COUPLER - quick lock, male

1шт.

10

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

12

H522375

ADAPTER

- drill stem, quick look, female to 1 inch PT

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figures 9-096 and 9-100 for additional parts.

1шт.

13

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figures 9-096 and 9-100 for additional parts.

1шт.

14

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 special threads x 1/2 inch

2шт.

15

H83352

ADAPTER

- dry boring, 1 inch PT, attaches to U joint

1шт.

16

H646901

ADAPTER

- dry boring, quick lock male, attaches to U joint

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figures 9-096 and 9-100 for additional parts.

1шт.

18

H522383

ADAPTER

- 1 inch PT to quick lock male

1шт.

20

H672563

EXTENSION

STEM - drill, quick lock, 5 foot long

1шт.

20

H672562

ADAPTER

STEM - drill, quick lock, 10 foot long (5) included in 185583A1 kit

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figures 9-096 and 9-100 for additional parts.

1шт.

22

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figures 9-096 and 9-100 for additional parts.

1шт.

23

H434273

NIPPLE, LUBE

COUPLER - quick lock, male

1шт.

H672594

COUPLING

COUPLER ASSEMBLY - quick lock, female

1шт.

25

H434272

COUPLING

COUPLER - quick lock, female, no longer available, order H672594 coupler assembly

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING - shaft, o ring seat, order H672594 coupler assembly

1шт.

27

NSS

NOT SOLD SEPARAT

SHAFT - stub, order H672594 coupler assembly

1шт.

27a

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figures 9-096 and 9-100 for additional parts.

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
