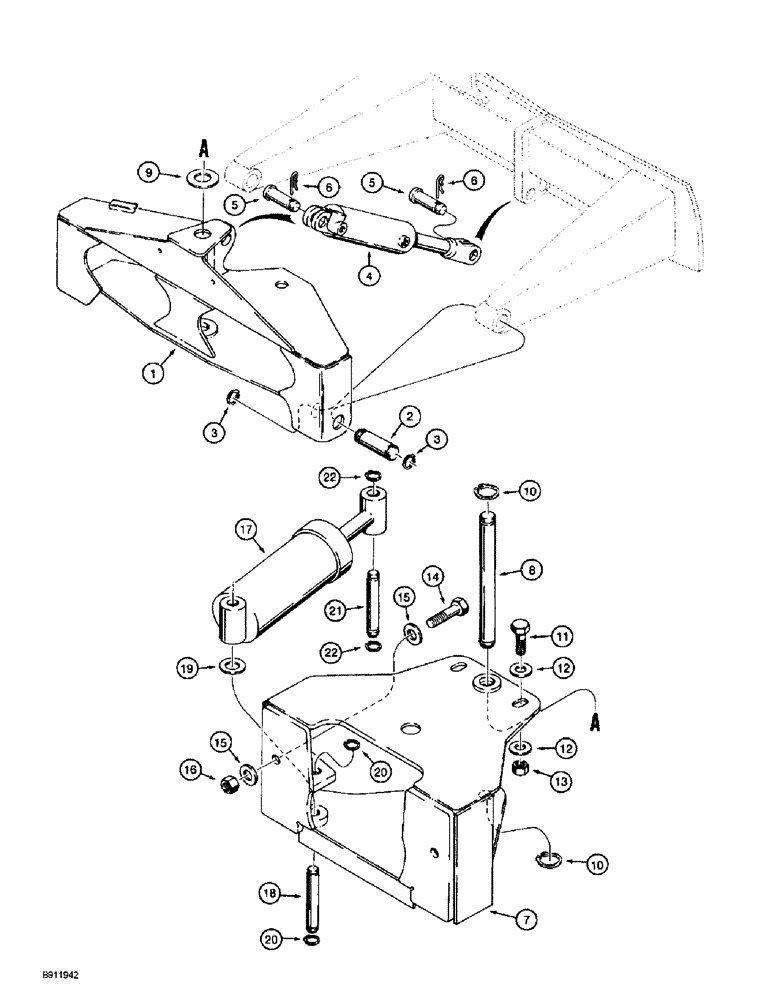

Запчасти Case 860 (9-084) - BACKFILL BLADE MOUNTING BRACKET AND FRAME (09) - CHASSIS/ATTACHMENTS

1

H672094

PIVOT

BRACKET - backfill arm pivot

1шт.

See Figure 9-082 for backfill blade and mounting arm.

1шт.

2

H432898

PIVOT PIN

PIN - pivot, backfill arm

2шт.

3

D25279

SNAP RING,M35, Int

RING - snap, pin

4шт.

4

101644A1

CYLINDER

ASSEMBLY - 76 (3) ID x 203 mm (8 inch) stroke, backfill blade lift, see Figure 8-068 for additional components, Includes Ref. 4 and 5

1шт.

5

N14001

CLEVIS PIN

PIN - clevis, cylinder to arm and pivot bracket

2шт.

6

1978738C1

HAIR PIN COTTER

3/16"

2шт.

7

H672095

FRAME

- backfill blade mounting

1шт.

See Figure 9-082 for backfill blade and mounting arm.

1шт.

8

H432906

PIVOT PIN

PIN - pivot, arm pivot to mounting frame

2шт.

9

195-2146

WASHER,1.56" ID x 3" OD x 0.13" Thk

- flat, 1-9/16 x 3 x 1/8 inch

1шт.

10

D25279

SNAP RING,M35, Int

RING - snap, pin

2шт.

11

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

2шт.

12

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch, hardened

4шт.

13

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

2шт.

14

413-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

- hex, 1 NC x 3-1/2 inch

2шт.

15

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch, hardened

4шт.

16

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

2шт.

17

H670935

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 203 mm (8 inch) stroke, backfill blade angle, parts list Figure 8-068

2шт.

18

H432880

PIN

- pivot, backfill blade angle cylinder, closed end

2шт.

19

495-81209

WASHER,1.31" ID x 2.5" OD x 0.13" Thk

- flat, 1-5/16 x 2-1/2 x 5-32 inch

2шт.

20

103-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

21

H432880

PIN

- pivot, backfill blade angle cylinder, rod end

2шт.

22

103-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.
