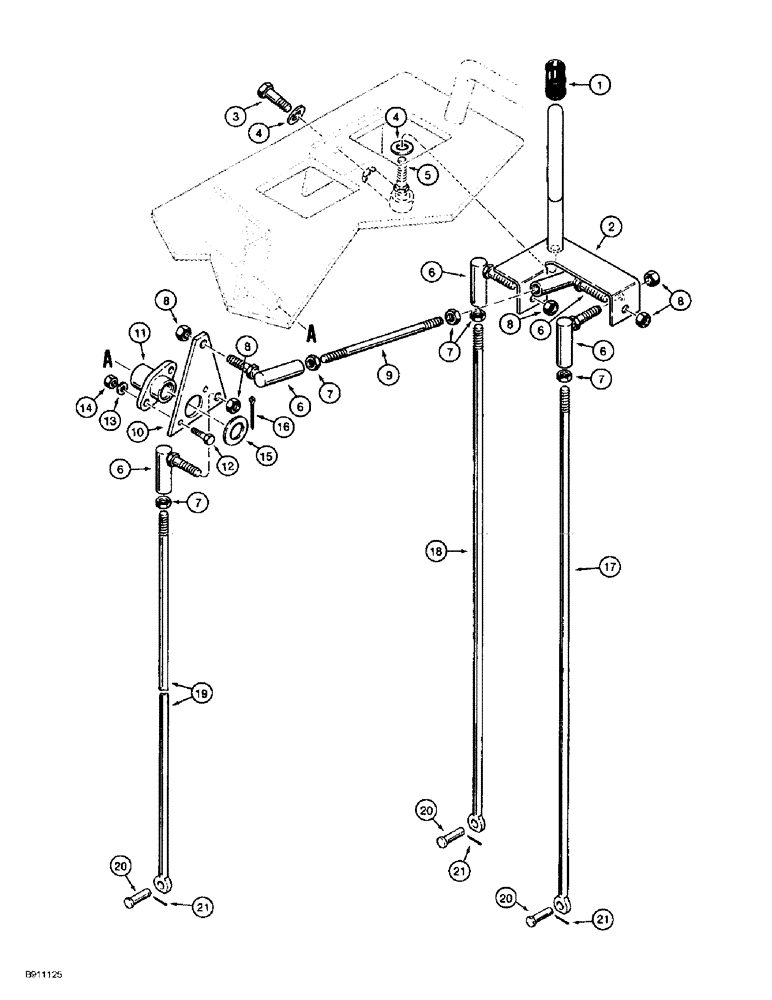

Запчасти Case 860 (9-080) - BACKFILL BLADE CONTROLS (09) - CHASSIS/ATTACHMENTS

1

D128268

HANDLE

GRIP - control lever, black

1шт.

2

H674828

HANDLE

- control

1шт.

3

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- hex, 1/2 NF x 1-1/4 inch

1шт.

4

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

5

L44143

BALL JOINT

JOINT - ball, special

1шт.

6

A60307

JOINT

- ball, 3/8 inch NF, female

5шт.

7

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

5шт.

8

232-4616

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

5шт.

9

H437117

LINK

ROD - connecting, Serial Range: handle-bellcrank

1шт.

10

H437162

PLATE

BELLCRANK - plate, control, Serial Range: rod-valve

1шт.

11

A162299

BEARING,15.95mm ID

- flange, bellcrank pivot

1шт.

12

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

13

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch, hardened

2шт.

14

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

2шт.

15

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

16

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

17

H438983

LINK

ROD - valve control, 644 mm long, blade tilt, Serial Range: handle-valve

1шт.

18

H438982

LINK

ROD - 630 mm long, blade lift, Serial Range: handle-valve

1шт.

19

H438981

LINK

ROD - valve control, 600 mm long, blade angle, Serial Range: bellcrank-valve

1шт.

20

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

3шт.

21

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

3шт.
