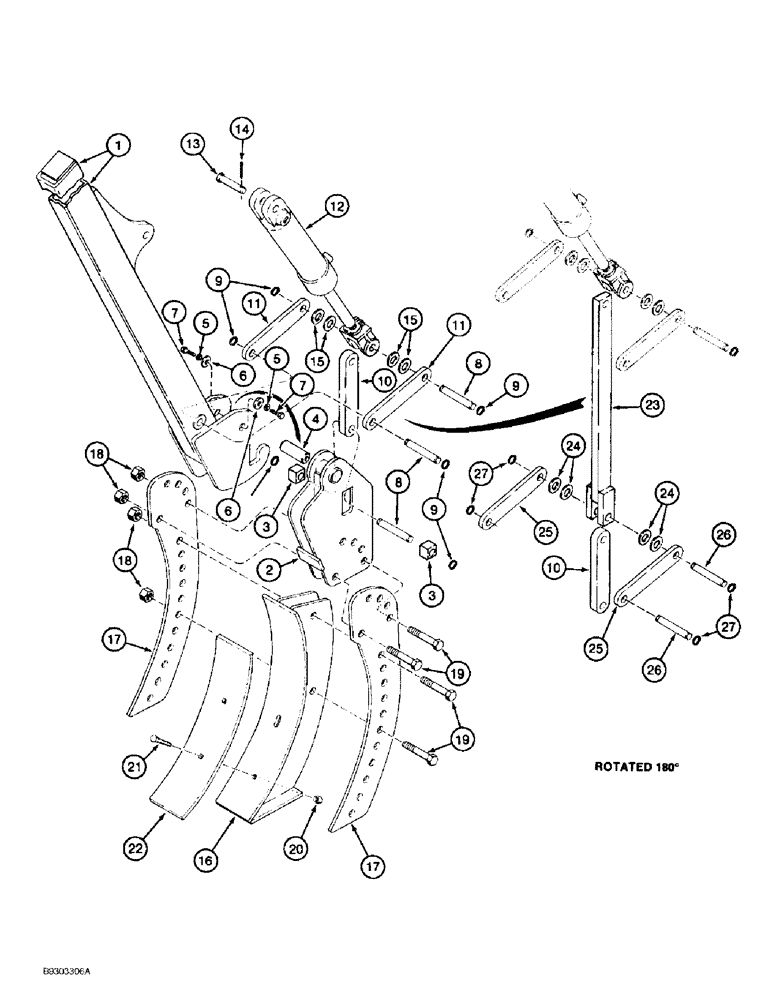

Запчасти Case 860 (9-079A) - HYDRAULIC CRUMBER - DIGGING CHAIN GUARD AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H672769

TUBE,717.7, 100.8 mm L

BOOM - crumber, 4 foot, if used

1шт.

1

H672852

TUBE,717.7, 140.7 mm L

BOOM - crumber, 5 foot, if used

1шт.

1

H672853

TUBE,1389.7, 140.7 mm L

BOOM - crumber, 6 foot, if used

1шт.

1

H672854

TUBE,140.7, 1389.7 mm L

BOOM - crumber, 7 foot, if used

1шт.

2

H672767

PIVOT

- crumber

1шт.

3

H435440

BLOCK

- slide

2шт.

4

H434920

PIN

- pivot, 1-1/4 x 4 inches long

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

495-81269

WASHER,0.53" ID x 2" OD x 0.24" Thk

- flat, 17/32 x 2 x 1/4 inch

2шт.

7

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

8

D137151

PIN,25.4mm OD x 122.6mm L

- pivot, 1 x 4-13/16 inch long

3шт.

9

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - snap

6шт.

10

H435270

LINK

-, Serial Range: boom-pivot

1шт.

11

H434627

LINK

-, Serial Range: boom-cylinder

2шт.

12

G34197

CYLINDER ASSY.

CYLINDER ASSEMBLY - 76 (3) ID X 254 mm (10 inch) stroke, crumber

1шт.

13

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

PIN - clevis, 1 x 3-1/2 inch, hardened, replaces H70623 pin

1шт.

14

432-1028

COTTER PIN,5/32" x 1 3/4"

PIN, SPLIT (COTTER), , Replaces 432-1636 pin 5/32" x 1 3/4"

1шт.

15

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

6шт.

16

H672768

SHOE (ASSY)

SHOE - crumber blade

1шт.

17

102540A1

LARGE PLATE

PLATE - pivot to shoe, Serial Range: pivot-shoe

1шт.

18

231-51412

FLANGE NUT,Flg, USR, 3/4"-10

4шт.

19

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

4шт.

20

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

21

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

2шт.

22

H434309

HALF BLADE

BLADE - hydraulic crumber, 5 inch width, if used

1шт.

22

H434952

HALF BLADE

BLADE - hydraulic crumber, 7 inch width, if used

1шт.

22

H434953

HALF BLADE

BLADE - hydraulic crumber, 9 inch width, if used

1шт.

22

H434954

HALF BLADE

BLADE - hydraulic crumber, 11 inch width, if used

1шт.

22

120955A1

BLADE

- hydraulic crumber, 13 inch width, if used

1шт.

22

120956A1

BLADE

- hydraulic crumber, 15 inch width, if used

1шт.

22

120957A1

BLADE

- hydraulic crumber, 17 inch width, if used

1шт.

23

107751A1

BAR

- extension, if used

1шт.

24

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch, if used

4шт.

25

H434627

LINK

- boom to cylinder, if used

2шт.

26

D137151

PIN,25.4mm OD x 122.6mm L

- pivot, 1 x 4-13/16 inch long, if used

2шт.

27

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - snap, if used

4шт.
