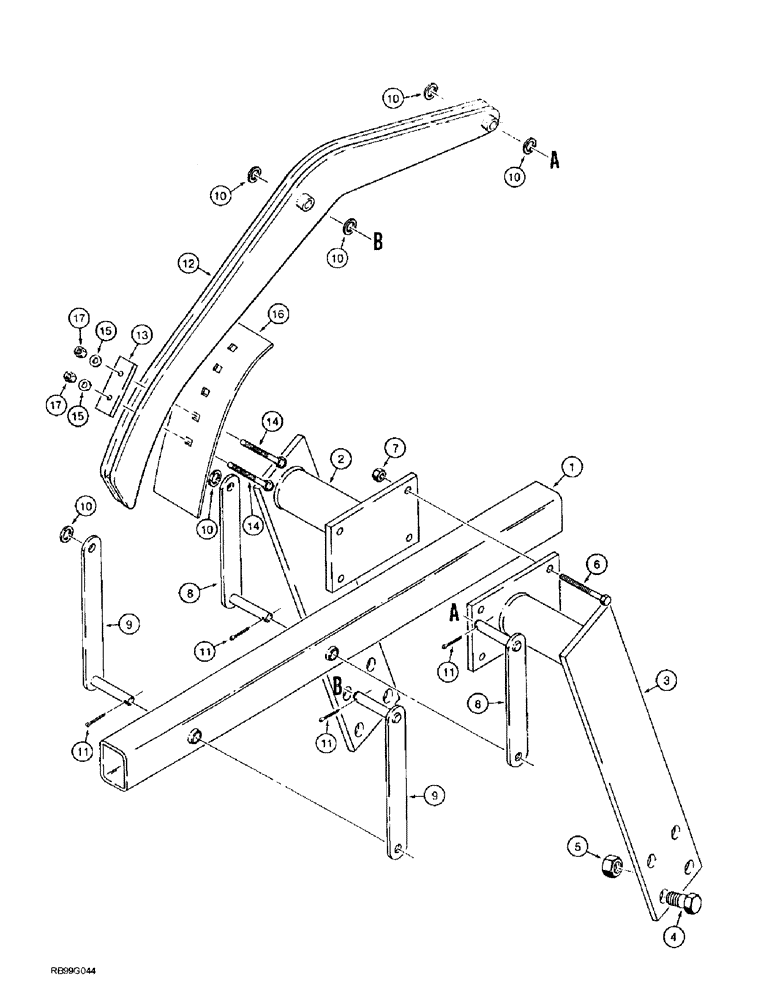

Запчасти Case 860 (9-078) - CRUMBER, DIGGING CHAIN GUARD AND MOUNTING (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
H672169
TUBE,190, 398 mm L
BOOM - crumber, 4 foot long, if used
1шт.
1
H672170
TUBE,1598 mm L
BOOM - crumber, 5 foot long, if used
1шт.
1
H672171
TUBE,1928 mm L
BOOM - crumber, 6 foot long, if used
1шт.
1
H672172
TUBE,2258 mm L
BOOM - crumber, 7 foot long, if used
1шт.
1
H434220
TUBE,1268 mm L
GUARD - digging chain, 4 foot long, units without crumber, if used
1шт.
1
H434221
TUBE,1598 mm L
GUARD - digging chain, 5 foot long, units without crumber, if used
1шт.
1
H434222
TUBE,1928 mm L
GUARD - digging chain, 6 foot long, units without crumber, if used
1шт.
1
H434223
TUBE,2258 mm L
GUARD - digging chain, 7 foot long, units without crumber, if used
1шт.
2
H672872
PLATE
BRACKET - crumber mounting, left-hand
1шт.
3
H672871
PLATE
BRACKET - crumber mounting, right-hand
1шт.
4
413-1632
BOLT,Hex, 1" - 8 x 2", Gr 5
- hex, 1 NC x 2 inch
6шт.
5
232-41116
LOCK NUT,1"-8, GC
NUT, LOCK, 1"-8, GC
6шт.
6
413-1080
BOLT,Hex, 5/8" - 11 x 5", Gr 5
4шт.
7
232-41110
NUT,5/8"-11, GC
NUT, LOCK, 5/8"-11, GC
4шт.
8
H673072
LINK
- boom to crumber, short
2шт.
9
H672721
LINK
- boom to crumber, long
2шт.
10
495-11081
WASHER,3/4", SAE
6шт.
11
432-1220
COTTER PIN,3/16" x 1 1/4"
3/16" x 1 1/4"
4шт.
12
H673071
ARM
BRACKET - crumber blade
1шт.
13
H309450
SPACER
PLATE - spacer, Serial Range: bracket-blade
1шт.
14
411-864
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2
BOLT - carriage, 1/2 NC x 4 inch, grade 2
2шт.
15
195-533
WASHER,1/2", SAE
- flat, 17/32 x 1-1/16 x 3/32 inch
2шт.
16
H127480
BLADE
- crumber, 6 inch wide, if used
1шт.
16
H60087
BLADE
- crumber, 8 inch wide, if used
1шт.
16
H60103
BLADE
- crumber, 10 inch wide, if used
1шт.
16
H60129
BLADE
- crumber, 11 inch wide, if used
1шт.
16
H60145
BLADE
- crumber, 13 inch wide, if used
1шт.
16
H60160
BLADE
- crumber, 16 inch wide, if used
1шт.
16
H60186
BLADE
- crumber, 18 inch wide, if used
1шт.
Выбрано товаров: 29
