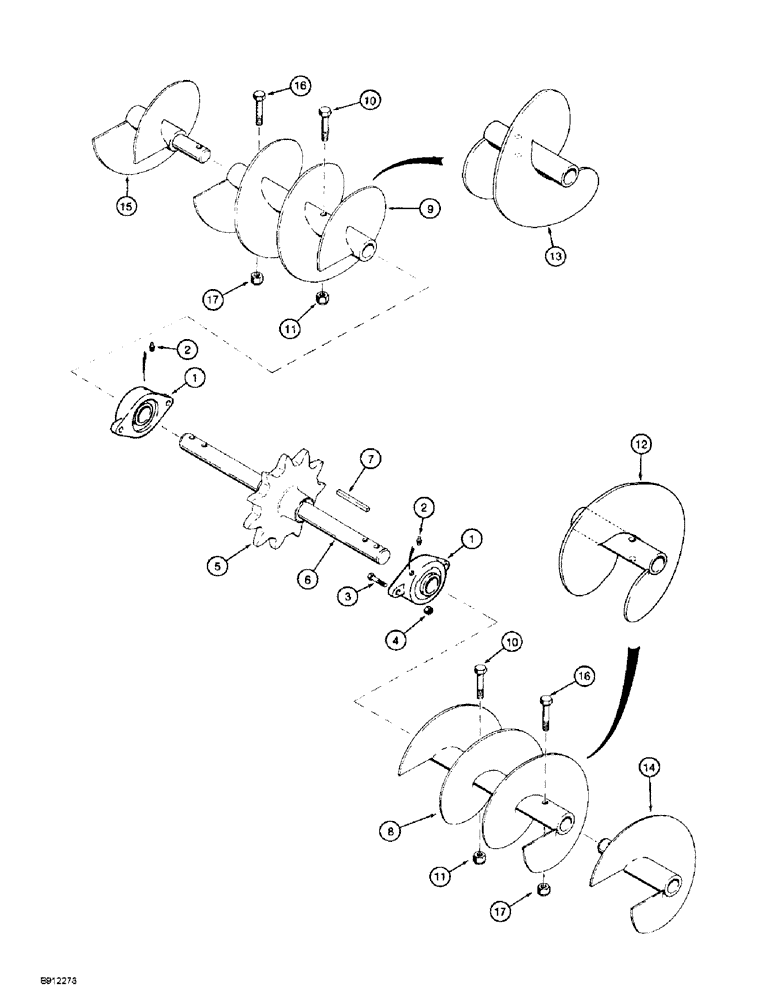

Запчасти Case 860 (9-076) - AUGER AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H759120

BEARING

- auger, Includes Ref. 2

2шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

3

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

4шт.

4

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

5

138936A1

SPROCKET ASSY.

SPROCKET - auger drive, 11T, replaces H434598

1шт.

6

H434597

SHAFT

- auger

1шт.

7

H433528

KEY

- shaft

1шт.

8

H672056

AUGER

- spoil removal, long, right-hand, if used

1шт.

9

H672057

AUGER

- spoil removal, long, left-hand, if used

1шт.

10

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

2шт.

11

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

12

H673128

AUGER

- spoil removal, short, right-hand, if used

1шт.

13

H673129

AUGER

- spoil removal, short, left-hand, if used

1шт.

14

H672396

AUGER

- spoil removal, right-hand, extension, used with item 8, if used

1шт.

15

H672395

AUGER

- spoil removal, left-hand, extension, used with item 9, if used

1шт.

16

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch, if used

2шт.

17

232-41112

NUT,3/4"-10, GC

NUT, LOCK, , If used 3/4"-10, GC

2шт.
