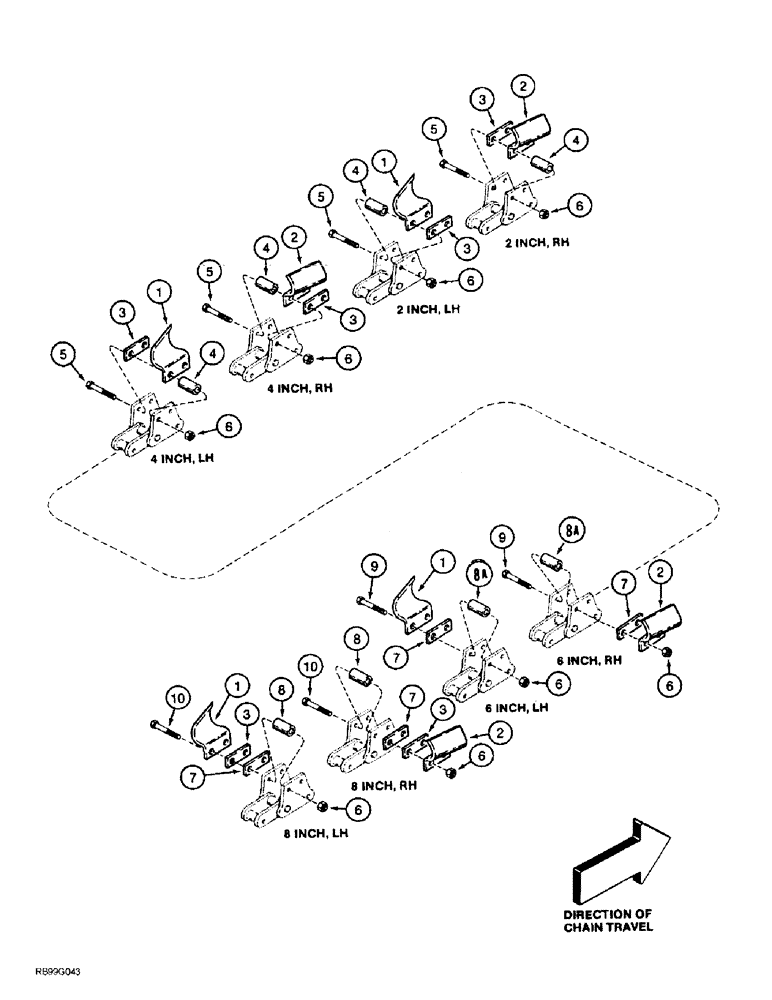

Запчасти Case 860 (9-072) - STANDARD DIGGING TEETH (09) - CHASSIS/ATTACHMENTS

1

H251371

TOOTH

- digging, right-hand

1шт.

2

H251389

TOOTH

- digging, left-hand

1шт.

3

H251504

SPACER

- tooth, flat, 1/2 x 1-1/4 x 3-1/2 inch

1шт.

4

H213496

SPACER

- tooth, tubular, 1 x 1-15/32 inch, 2 inch and 4 inch spacing

1шт.

5

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

- hex, 5/8 NC x 4 inch, grade 8

1шт.

6

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

7

H138990

SPACER

- flat, 5/16 x 1-1/8 x 3-1/2 inch, tooth

1шт.

8

H251496

SPACER

- tooth, tubular, 1 x 2-11/32 inch, 8 inch spacing

1шт.

8a

H138982

SPACER

- tooth, tubular, 1 x 2-1/8 inch, 6 inch spacing

1шт.

9

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, G8

1шт.

10

426-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

- hex, 5/8 NC x 5 inch, grade 8

1шт.
