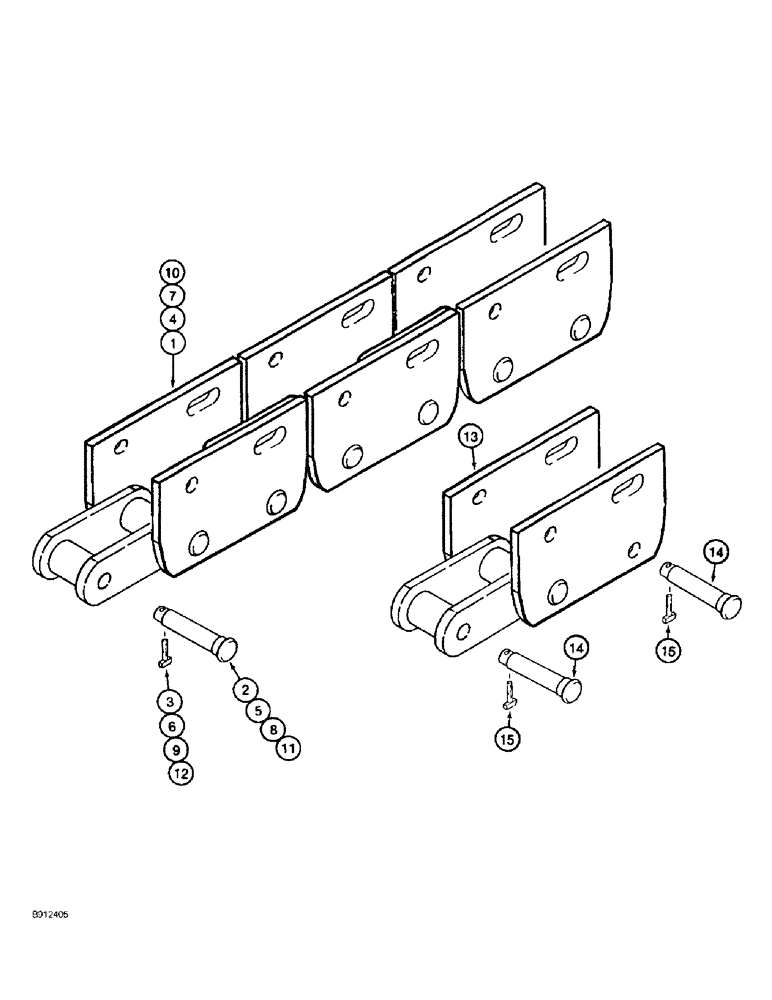

Запчасти Case 860 (9-070) - ANTI-BACKFLEX DIGGING CHAINS - 150,000 POUND CHAINLINE (09) - CHASSIS/ATTACHMENTS

102547A1

CHAIN (CE)

CHAIN ASSEMBLY - digging, anti-backflex, 60 pitches, for 4 foot digging depth boom, Includes Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN - digging, anti-backflex, 62 pitches

1шт.

2

102502A1

PIN

- connector

1шт.

3

102503A1

LINCH PIN

PIN - pin retaining, chain

1шт.

102547A1

CHAIN (CE)

CHAIN ASSEMBLY - digging, anti-backflex, 60 pitches, for 5 foot depth boom, Includes Ref. 4 - 6

1шт.

102548A1

CHAIN (CE)

CHAIN ASSEMBLY - digging, anti-backflex, 8 pitches, for 5 foot depth boom, Includes Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

CHAIN - digging, anti-backflex, 60 pitches, included with 102547A1 chain assembly

1шт.

4

NSS

NOT SOLD SEPARAT

CHAIN - digging, anti-backflex, 8 pitches, included with 102548A1 chain assembly

1шт.

5

102502A1

PIN

- connector, for 5 foot depth boom

1шт.

6

102503A1

LINCH PIN

PIN - pin retaining, chain, for 5 foot depth boom

1шт.

102547A1

CHAIN (CE)

CHAIN ASSEMBLY - digging, anti-backflex, 60 pitches, for 6 foot depth boom, Includes Ref. 7 - 9

1шт.

102548A1

CHAIN (CE)

CHAIN ASSEMBLY - digging, anti-backflex, 8 pitches, for 6 foot depth boom, Includes Ref. 7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

CHAIN - digging, anti-backflex, 60 pitches, included with 102547A1 chain assembly

1шт.

7

NSS

NOT SOLD SEPARAT

CHAIN - digging, anti-backflex, 8 pitches, included with 102548A1 chain assembly

1шт.

8

102502A1

PIN

- connector, for 6 foot depth boom

1шт.

9

102503A1

LINCH PIN

PIN - pin retaining, chain, for 6 foot depth boom

1шт.

102547A1

CHAIN (CE)

CHAIN ASSEMBLY - digging, anti-backflex, 60 pitches, for 7 foot depth boom, Includes Ref. 10 - 12

1шт.

102548A1

CHAIN (CE)

CHAIN ASSEMBLY - digging, anti-backflex, 8 pitches, for 7 foot depth boom, Includes Ref. 10 - 12

3шт.

10

NSS

NOT SOLD SEPARAT

CHAIN - digging, anti-backflex, 60 pitches, included with 102547A1 chain assembly

1шт.

10

NSS

NOT SOLD SEPARAT

CHAIN - digging, anti-backflex, 8 pitches, included with 102548A1 chain assembly

1шт.

11

102502A1

PIN

- connector, for 7 foot depth boom

1шт.

12

102503A1

LINCH PIN

PIN - pin retaining, chain, for 7 foot depth boom

1шт.

102549A1

CHAIN (AG)

CHAIN ASSEMBLY - repair section, anti-backflex, 2 pitches, Includes Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

CHAIN - repair section, anti-backflex, 2 pitches

1шт.

14

102502A1

PIN

- connector, chain repair section

1шт.

15

102503A1

LINCH PIN

PIN - pin retaining, chain repair section

1шт.
