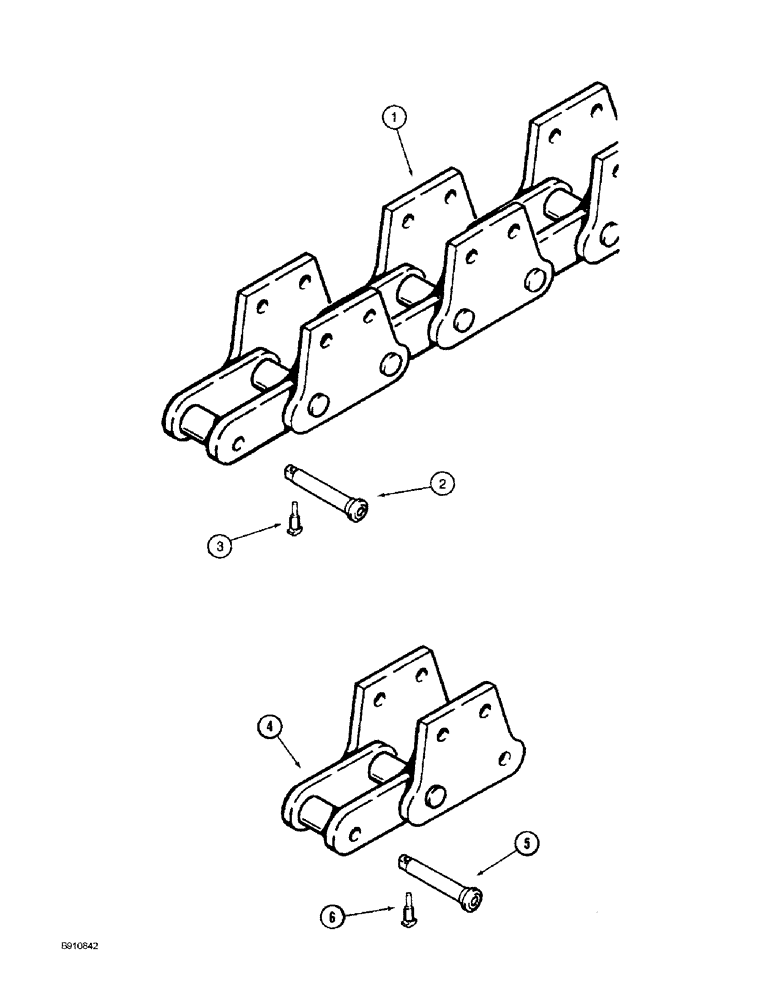

Запчасти Case 860 (9-068[A]) - STANDARD DIGGING CHAINS - 110,000 POUND CHAINLINE FOR 5 FOOT DIGGING DEPTH BOOM (09) - CHASSIS/ATTACHMENTS

H588400

CHAIN (AG)

CHAIN ASSEMBLY - digging, standard, 54 pitches, Includes: Ref. 1 - 3

1шт.

H672439

CHAIN (AG)

CHAIN ASSEMBLY - digging, standard, 8 pitches, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

CHAIN - digging, standard, 54 pitches, included with H588400 chain assembly, for 5 foot depth boom

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN - digging, standard, 8 pitches, included with H672439 chain assembly, for 5 foot depth boom

1шт.

2

H227868

PIN

- connector, special, for 5 foot digging depth boom

1шт.

3

H234195

AXLE PIN

PIN - lock, pin retaining, chain, for 5 foot digging depth boom

1шт.

H572982

LINK

CHAIN ASSEMBLY - repair section, 2 pitches, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

CHAIN - repair section, 2 pitches

1шт.

5

H227868

PIN

- connector, special, chain repair section

1шт.

6

H234195

AXLE PIN

PIN - lock, pin retaining, chain repair section

1шт.
