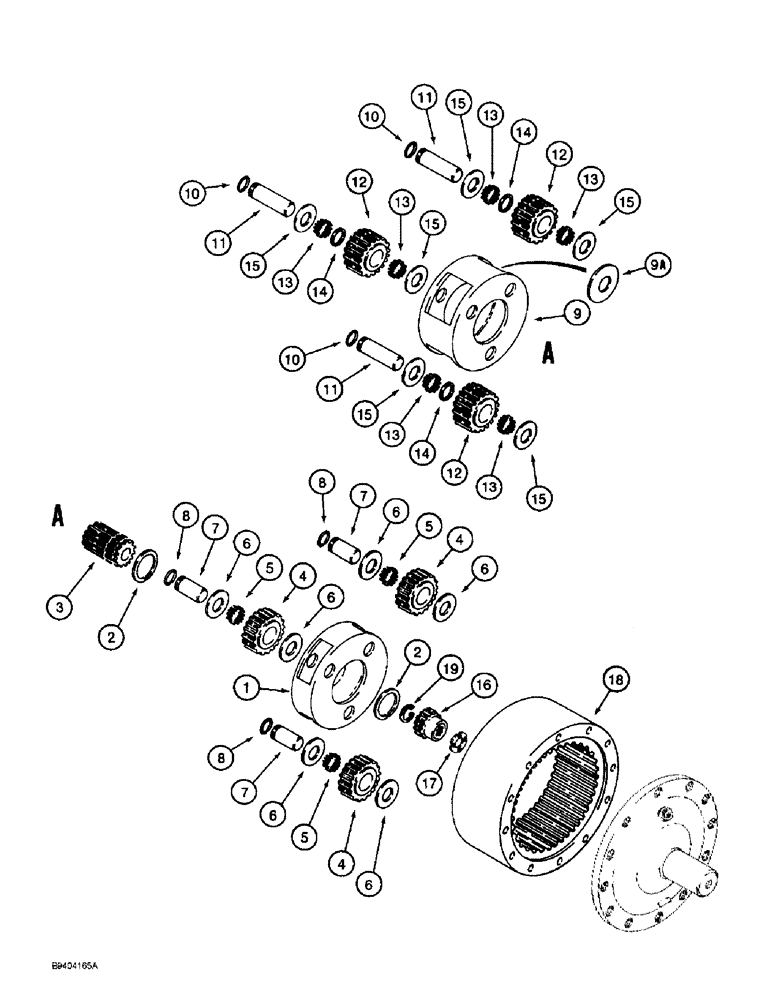

Запчасти Case 860 (9-066) - TRENCHER DRIVE PLANETARY ASSEMBLY - H674875 (09) - CHASSIS/ATTACHMENTS

H674875

REDUCER

PLANETARY ASSEMBLY - trencher drive, Includes: Ref. 1 - 18

1шт.

See Figure 9-048 for planetary cover and mounting.

1шт.

103877A1

CARRIER

ASSEMBLY - planetary, primary, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

CARRIER - planetary, primary

1шт.

2

N13361

RING, SNAP

RING - snap, sun gear

2шт.

3

103882A1

GEAR

- sun, primary planetary

1шт.

4

103881A1

GEAR

- planetary

3шт.

5

103883A1

PIN

BEARING - needle, planetary, gear

48шт.

6

N13359

WASHER

- thrust, planetary gear

6шт.

7

N13362

SHAFT

- pinion

3шт.

8

A37643

SNAP RING,#102, .962", Ext

RING - snap, pinion shaft

3шт.

103876A1

CARRIER

ASSEMBLY - planetary, secondary, Includes: Ref. 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

CARRIER - planetary, secondary

1шт.

9a

N13731

WASHER

- thrust, special, carrier

1шт.

10

A37643

SNAP RING,#102, .962", Ext

RING - snap, pinion shaft

3шт.

11

N13357

SHAFT

- pinion

3шт.

12

103879A1

GEAR

- planetary

3шт.

13

103880A1

PIN

BEARING - needle, planetary gear

96шт.

14

N13360

SEPARATOR

- needle bearing

3шт.

15

N13359

WASHER

- thrust, planetary gear

6шт.

16

103878A1

SUN GEAR

GEAR - sun, planetary

1шт.

17

N6363

WASHER

- thrust, sun gear

1шт.

18

N13355

GEAR

- ring, planetary

1шт.

19

100-2175

SNAP RING,0.75", Int, #75

Ring, Snap, , Driveshaft from walking through gear 0.75", Int, #75

1шт.
