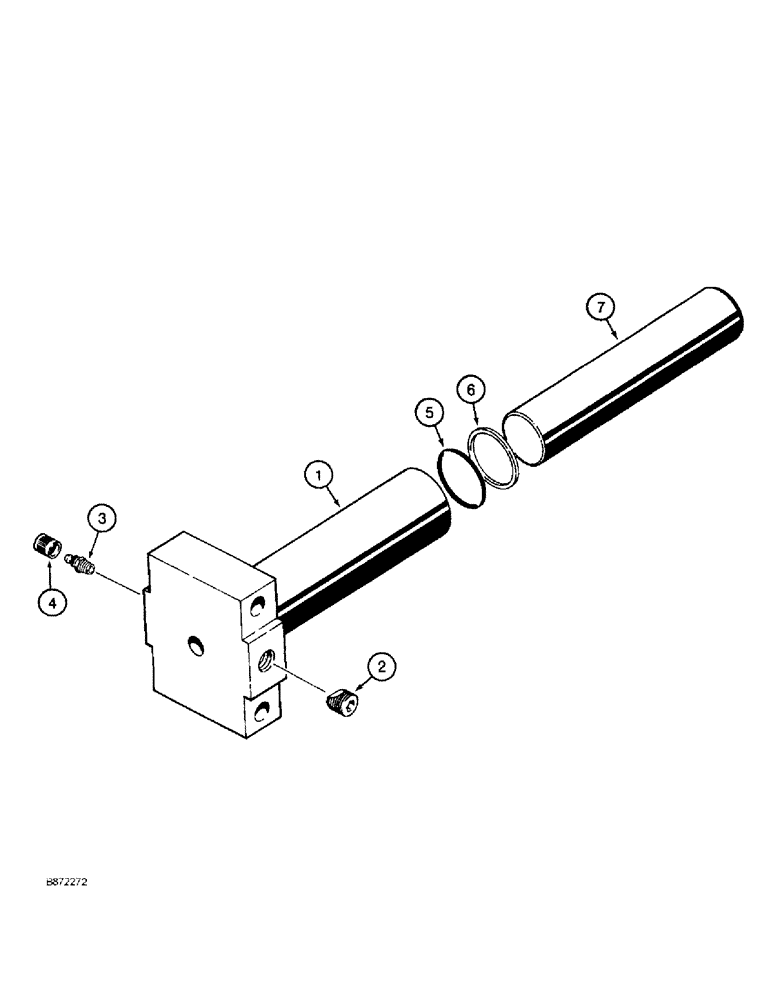

Запчасти Case 860 (9-064) - TRENCHER ROCK BOOM CHAIN ADJUSTER ASSEMBLY - H672751 (09) - CHASSIS/ATTACHMENTS

H672751

CYLINDER

ADJUSTER ASSEMBLY - chain, rock boom, Includes: Ref. 1 - 7

1шт.

1

H672695

CYLINDER

ADJUSTER - chain, rock boom

1шт.

2

H114728

PLUG

- hex socket, 3/8 inch PT, grease bleed

1шт.

3

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

FITTING - grease, straight, with cap, 1/8 PT x 1 inch, Includes: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - grease fitting, order 219-66 grease fitting

1шт.

5

238-6327

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

1шт.

6

H755009

RING

- backup, adjuster O-ring

1шт.

7

H434551

ROD

- adjuster

1шт.
