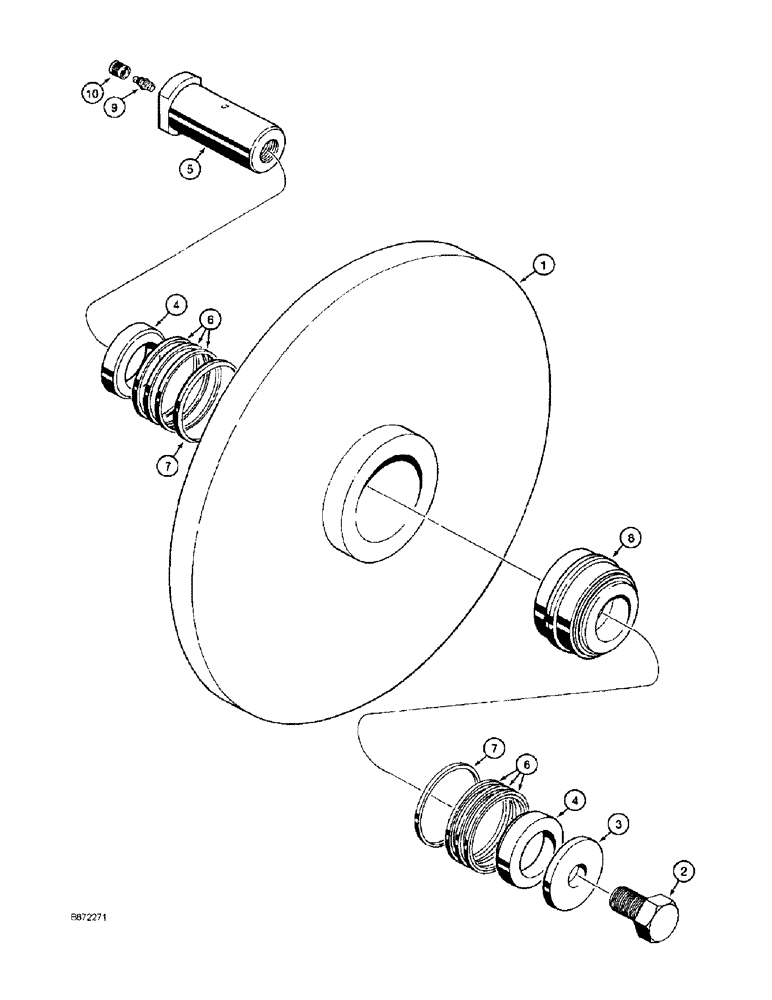

Запчасти Case 860 (9-062) - TRENCHER ROCK BOOM ROLLER ASSEMBLY - H672962 (09) - CHASSIS/ATTACHMENTS

H672962

ROLLER

ASSEMBLY - rock boom end, Includes: Ref. 1 - 10

1шт.

1

H672961

SHIFTER ROLLER

ROLLER - rock boom end

1шт.

2

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch

1шт.

3

139027A1

WASHER,19.45mm ID x 76.2mm OD x 13mm Thk

- flat, special, pin retaining, replaces R40509 washer, 5/16 inch thick

1шт.

4

H435227

SPACER

- bearing, boom end

2шт.

5

H435228

PIN

- special, boom end roller

1шт.

6

H435218

SEAL

- boom end roller

6шт.

7

H435226

SPACER

- seal, rock boom end

2шт.

8

H759118

BEARING ASSY,52.4mm ID x 92.1mm OD x 54.75mm W

BEARING - tapered roller

1шт.

9

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

FITTING - grease, straight, with cap, 1/8 PT x 1 inch, Includes: Ref. 10

1шт.

10

NSS

NOT SOLD SEPARAT

CAP - grease fitting, order 219-66 grease fitting

1шт.
