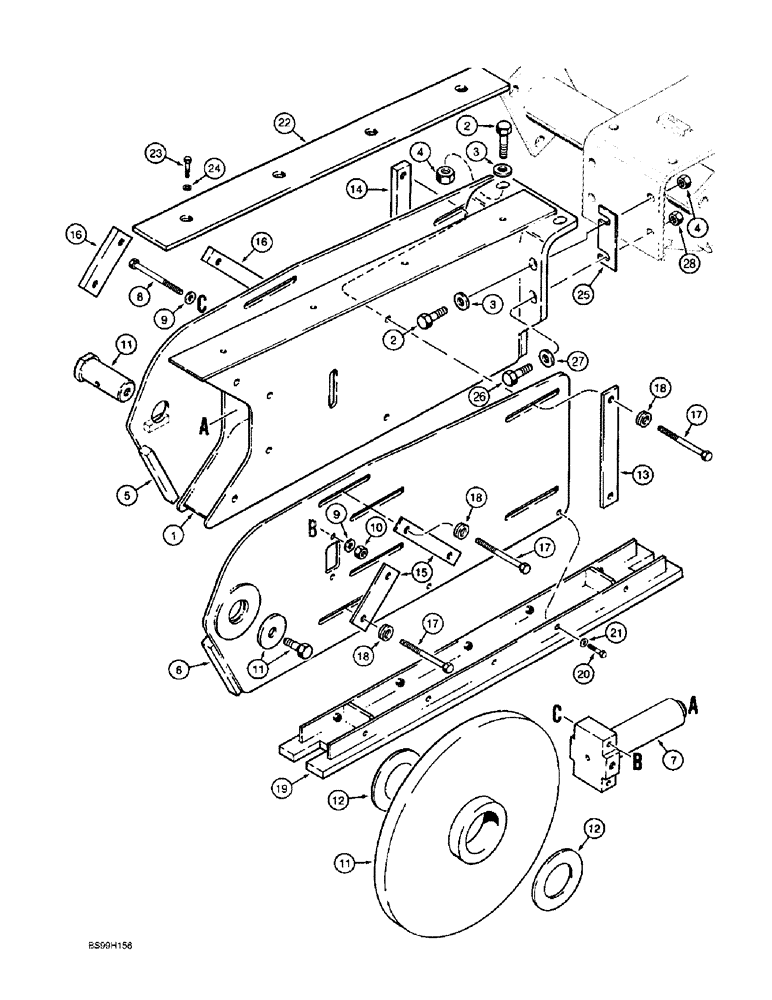

Запчасти Case 860 (9-058) - TRENCHER BOOMS AND MOUNTING - ROCK BOOM, 4 FOOT (LH STOP BAR) (09) - CHASSIS/ATTACHMENTS

1

H672694

BOOM

- trencher, rock, 4 foot

1шт.

2

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch

4шт.

4

231-51412

FLANGE NUT,Flg, USR, 3/4"-10

4шт.

5

H672976

PLATE

- rock boom end, left-hand, no longer available, order Ref. 5, 123762A2 and Ref. 6, 123765A1 on Figure 9-059A

1шт.

See illustration for boom end plate identification. Also note location of rock boom roller pin. Stop bar is used to keep roller pin in place.

1шт.

6

H672970

PLATE

- rock boom end, right-hand no longe available, order Ref. 5, 123762A2 and Ref. 6, 123765A1 on Figure 9-059A

1шт.

7

H672751

CYLINDER

ADJUSTER ASSEMBLY - chain, rock boom, parts list Figure 9-064

1шт.

8

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

2шт.

9

H274894

WASHER

- flat, special

4шт.

10

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

11

H672962

ROLLER

ASSEMBLY - rock boom end, parts list Figure 9-062

1шт.

12

H435229

WASHER,80.2mm ID x 140mm OD x 1.58mm Thk

- flat, special, boom end roller

2шт.

13

H434510

BAR

- boom end plate retaining, long, right-hand

1шт.

14

H434511

BAR

- boom end plate retaining, long, tapped, left-hand

1шт.

15

H434671

BAR

- boom end plate retaining, short, right-hand

2шт.

16

H434555

BAR

- boom end plate retaining, short, tapped, left-hand

2шт.

17

426-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

- hex, 5/8 NC x 5-1/2 inch, grade 8

6шт.

18

H434670

LOCK WASHER

- disc locking, special

6шт.

19

H672693

CHANNEL

- wear pad, lower

1шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

10шт.

21

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

10шт.

22

H434549

BAR

PAD - wear, trencher rock boom

1шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

25

H437275

SHIM,1.50mm Thk

Trencher boom to boom mounting bracket 1.50mm Thk

1шт.

26

426-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

- hex, 1 NC x 2-1/2 inch, grade 8

2шт.

27

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

2шт.

28

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

2шт.
