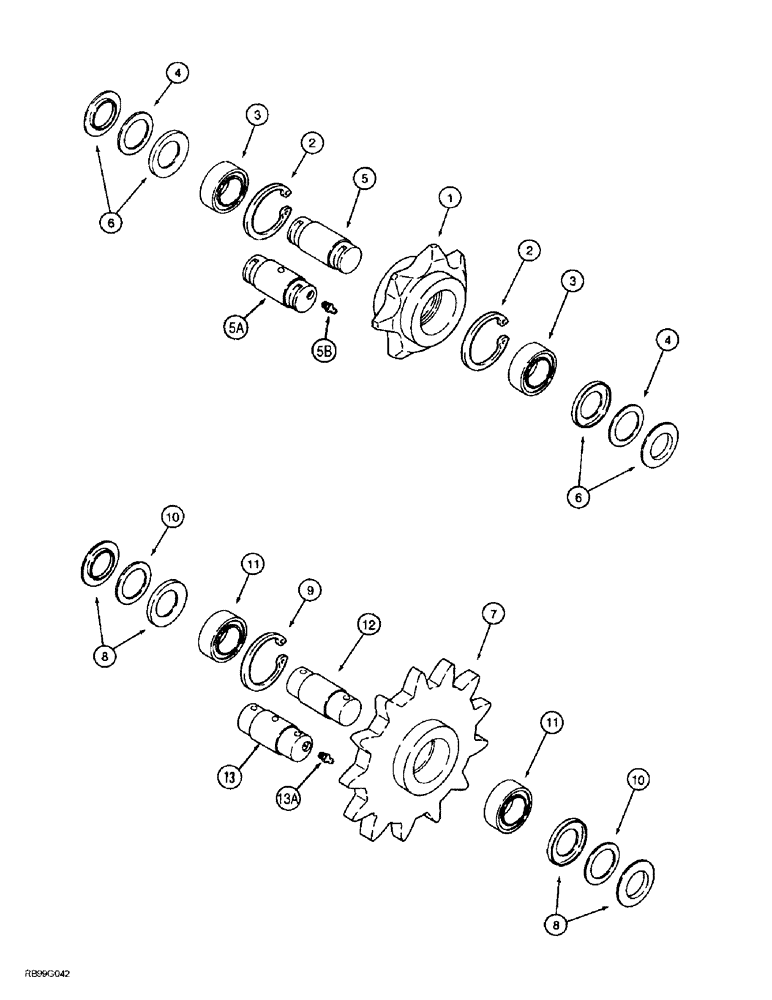

Запчасти Case 860 (9-056) - IDLER AND BOOM END SPROCKETS (09) - CHASSIS/ATTACHMENTS

1

H433989

DRIVE SPROCKET

SPROCKET - idler, 8 teeth, 8T, 1 used with 4 and 5 foot booms, 2 used with 6 and 7 foot booms

1-2шт.

2

100-21393

SNAP RING,3.938", Int, #393

Ring, Snap, , Idler sprocket brg 3.938", Int, #393

2-4шт.

3

H747394

BEARING,55.6mm ID x 100mm OD x 33.4mm W

- idler sprocket

2-4шт.

4

H433990

WASHER

- felt, special

2-4шт.

5

H433898

SHAFT

- idler sprocket, non-lubricated, if used

1-2шт.

5a

H436669

SHAFT

- idler sprocket, lubricated, service option

1-2шт.

5b

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1-2шт.

6

H759109

SEAL

- two-piece, idler sprocket shaft

2-4шт.

7

H433851

DRIVE SPROCKET

SPROCKET - trencher boom end, 13 teeth, 13T, if used

1шт.

7

199343A1

SPROCKET ASSY.

SPROCKET - trencher boom end, 11 teeth, if used, not shown

1шт.

8

H759109

SEAL

- two-piece, boom end sprocket bearing

2шт.

9

100-21393

SNAP RING,3.938", Int, #393

Ring, Snap, , Brg locating, boom end sprocket 3.938", Int, #393

1шт.

10

H433990

WASHER

- felt, special, boom end sprocket

2шт.

11

H747394

BEARING,55.6mm ID x 100mm OD x 33.4mm W

- boom end sprocket

2шт.

12

H433777

SHAFT

- boom end sprocket, non-lubricated, if used

1шт.

13

H436670

SHAFT

- boom end sprocket, lubricated, service option

1шт.

13a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper, Boom end sprocket 1/4"-28 NPT x .54" lg

1шт.
