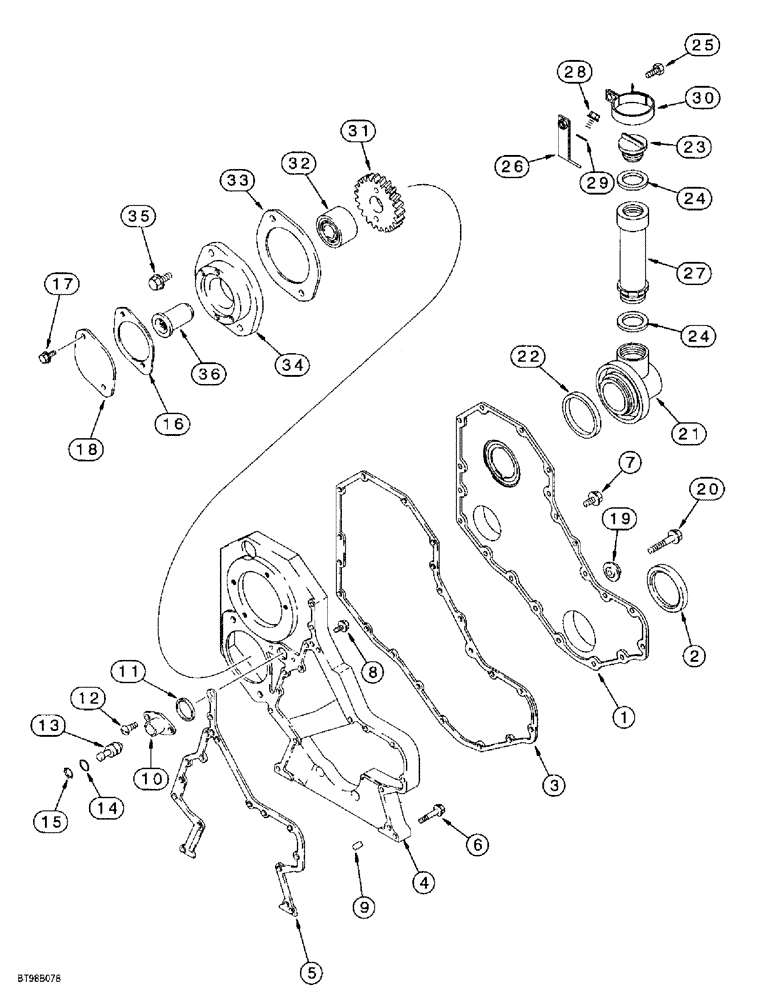

Запчасти Case 860 (2-19A) - FRONT GEAR COVER - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J918675

COVER

- gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft, front, order item 13 kit on Figure 2-41A

1шт.

3

J918673

GASKET,1.02mm Thk

- front cover

1шт.

4

J932120

HOUSING

- timing gear

1шт.

5

J931351

GASKET

- gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm (8) for front gear cover to timing gear housing to engine block and (2) for timing gear housing to engine block

10шт.

7

J924962

FLANGE BOLT

BOLT - hex flange, special, 8 - 1.25 x 16 mm, front gear cover to timing gear housing

8шт.

8

J924962

FLANGE BOLT

BOLT - hex flange, special, 8 - 1.25 x 16 mm, timing gear housing to engine block

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long

2шт.

10

J919683

HOUSING

- timing pin

1шт.

11

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing

1шт.

12

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

13

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

14

J913994

O-RING

- sealing

1шт.

15

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

16

J931608

GASKET

- access cover plate

1шт.

17

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.

18

A77509

PLATE

- cover

1шт.

19

J912772

RETAINER

- bolt

1шт.

20

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 60 mm

1шт.

21

J921644

ADAPTER

CONNECTOR - engine oil fill

1шт.

22

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover

1шт.

23

J901895

CAP

- oil filler

1шт.

24

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

2шт.

25

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm

1шт.

26

J914497

SUPPORT

BRACE - tube

1шт.

27

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

- oil filler

1шт.

28

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

Retaining, Brace to head Hex Flg, M6 x 15, 8.8, Full Thd

1шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

30

J914940

CLAMP

- tube

1шт.

31

J931338

GEAR

- drive, accessory

1шт.

32

J902601

BEARING, ROLLER,35mm ID x 64mm OD x 37mm W

BEARING - pump roller

1шт.

33

J3004242

GASKET

- pump adapter, replaces A77507 gasket

1шт.

34

J923239

FLANGE

ADAPTER - hydraulic pump

1шт.

35

854-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 35 mm, class 10.9

2шт.

36

J923243

SHAFT

- accessory drive

1шт.
