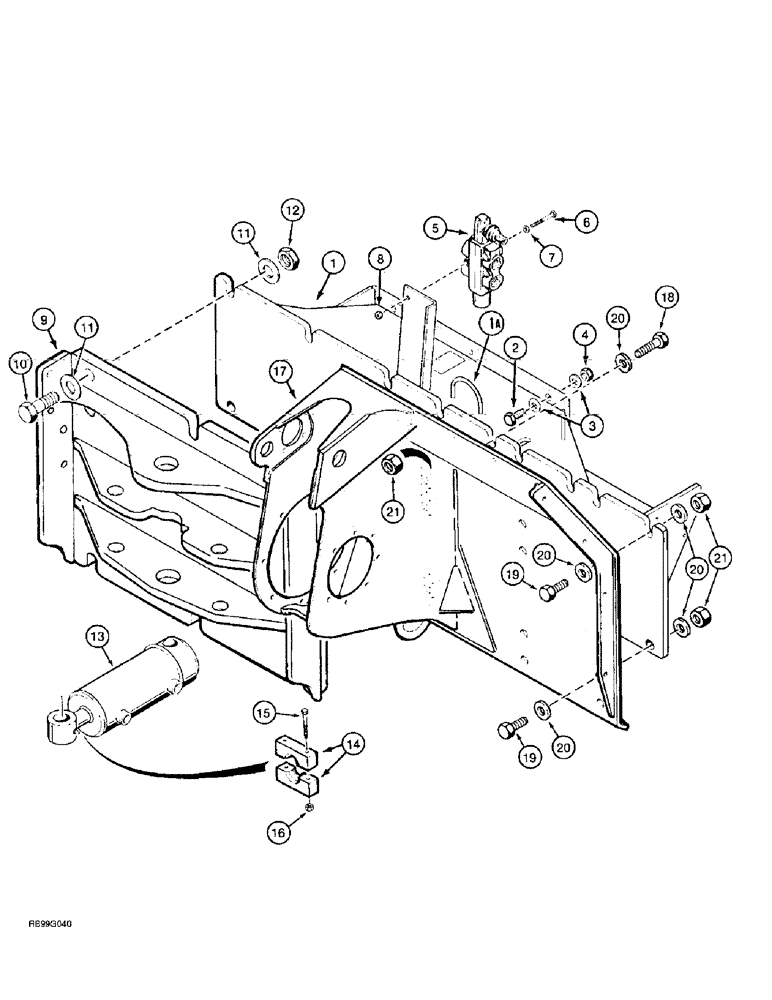

Запчасти Case 860 (9-044) - STANDARD QUAD FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

106607A1

CHASSIS

FRAME - quad, used to mount trencher and plow attachments to rear of unit, Includes: Ref. 1A

1шт.

Trencher and plow attachments mount to quad frame using existing hardware.

1шт.

1a

348957A1

BRACKET

- tiedown, frame, Serial Range: welded-frame

1шт.

2

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

6шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

12шт.

4

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

6шт.

5

104946A1

VALVE

ASSEMBLY - selector, trencher/plow, parts list Figure 8-120

1шт.

6

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

8

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

9

H673800

PLATE

BRACKET - mounting, see Figure 9-102 for plow swing tower and mounting bracket

1шт.

Included with the basic plow attachment. See Figure 9-102 for plow mounting bracket and hardware.

1шт.

10

413-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

- hex, 1 NC x 3-1/2 inch

6шт.

Included with the basic plow attachment. See Figure 9-102 for plow mounting bracket and hardware.

1шт.

11

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

12шт.

Included with the basic plow attachment. See Figure 9-102 for plow mounting bracket and hardware.

1шт.

12

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

6шт.

Included with the basic plow attachment. See Figure 9-102 for plow mounting bracket and hardware.

1шт.

13

H673704

CYLINDER,101.6 mm ID x 327 mm L

ASSEMBLY - 102 (4) ID x 152 mm (6 inch) stroke, plow swing, parts list Figure 8-108

2шт.

Included with the basic plow attachment. See Figure 9-102 for plow mounting bracket and hardware.

1шт.

H675015

STOP

ASSEMBLY - cylinder, plow swing, mounts on right-hand swing cylinder on quad units, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

BLOCK - swing cylinder stop, includes both halves

1шт.

15

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

16

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

17

116465A1

SUPPORT

FRAME - trencher

1шт.

Included with the basic trencher attachment. See Figure 9-042 for trencher mounting frame and hardware .

1шт.

18

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

2шт.

Included with the basic trencher attachment. See Figure 9-042 for trencher mounting frame and hardware .

1шт.

19

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

5шт.

Included with the basic trencher attachment. See Figure 9-042 for trencher mounting frame and hardware .

1шт.

20

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64

12шт.

Included with the basic trencher attachment. See Figure 9-042 for trencher mounting frame and hardware .

1шт.

21

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

7шт.

Included with the basic trencher attachment. See Figure 9-042 for trencher mounting frame and hardware .

1шт.
