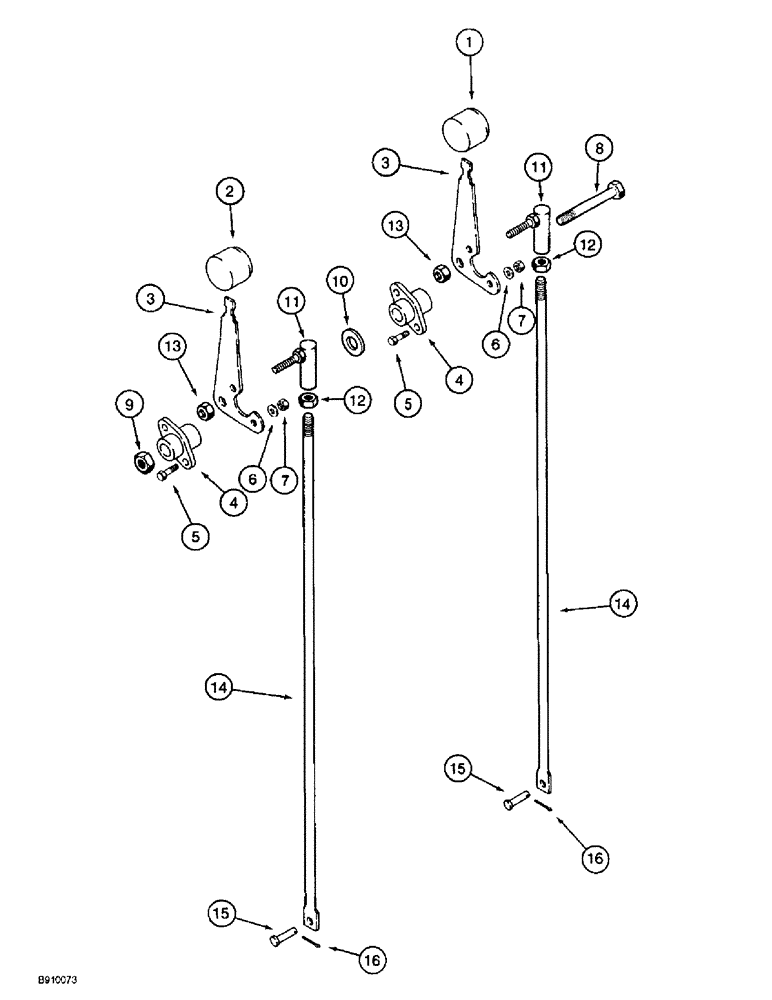

Запчасти Case 860 (9-040) - ATTACHMENT LIFT CONTROLS (09) - CHASSIS/ATTACHMENTS

1

A177440

KNOB

- attachment lift control lever, yellow

1шт.

2

A177438

KNOB

- attachment lift control lever, black

1шт.

3

H436209

HANDLE

LEVER - attachment lift controls

2шт.

4

A162299

BEARING,15.95mm ID

- flange, lever

2шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

6

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch, hardened

4шт.

7

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

4шт.

8

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

9

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

10

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

11

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT - ball, 3/8 inch NF, female

2шт.

12

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

2шт.

13

232-4616

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

2шт.

14

H438982

LINK

ROD - 630 mm long, attachment lift control valve actuating

2шт.

15

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

2шт.

16

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.
