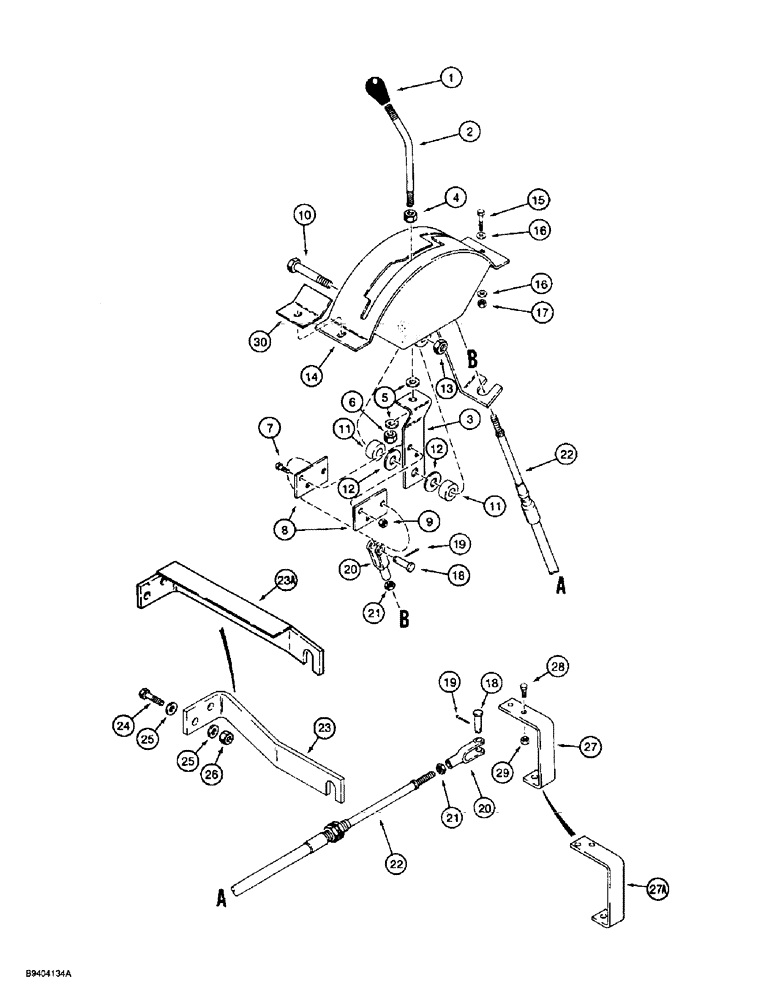

Запчасти Case 860 (9-038) - ATTACHMENT SPEED CONTROL (09) - CHASSIS/ATTACHMENTS

1

A14051

GRIP

KNOB - attachment speed control lever

1шт.

2

H191924

LEVER

ROD - control

1шт.

3

H434691

LEVER

- control, attachment speed

1шт.

4

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

6

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

8

H433515

PLATE

- cable mounting

2шт.

9

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

2шт.

10

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

11

H428284

SPACER

- lever

2шт.

12

H256305

WASHER

- flat, special

2шт.

13

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

1шт.

14

H672244

CONTROL

HOUSING - control lever

1шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

16

H426775

WASHER

- flat, special, hardened

4шт.

17

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

2шт.

18

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN - clevis, 5/16 x 1 inch, special

2шт.

19

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

20

A18709

CLEVIS

- cable end

2шт.

21

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

2шт.

22

H644401

CABLE

- attachment speed control

1шт.

23

107466A1

BRACKET

- cable mounting, no longer available, order 123503A1 bracket (item 23A) and 123505A1 lever (item 27)

1шт.

23a

123503A1

BRACKET

- cable mounting

1шт.

24

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

25

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

26

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

27

107487A1

BRACKET

LEVER - tandem pump control, no longer available, order 123505A1 lever (item 27A) and 123503A1 bracket (item 23A)

1шт.

27a

123505A1

BRACKET

LEVER - tandem pump control

1шт.

28

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

29

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

2шт.

30

H435573

STOP

- plow speed control, used only on units equipped with plow

1шт.
