(9-036) - BACKHOE BUCKETS

Запчасти Case 860 (9-036) - BACKHOE BUCKETS (09) - CHASSIS/ATTACHMENTS

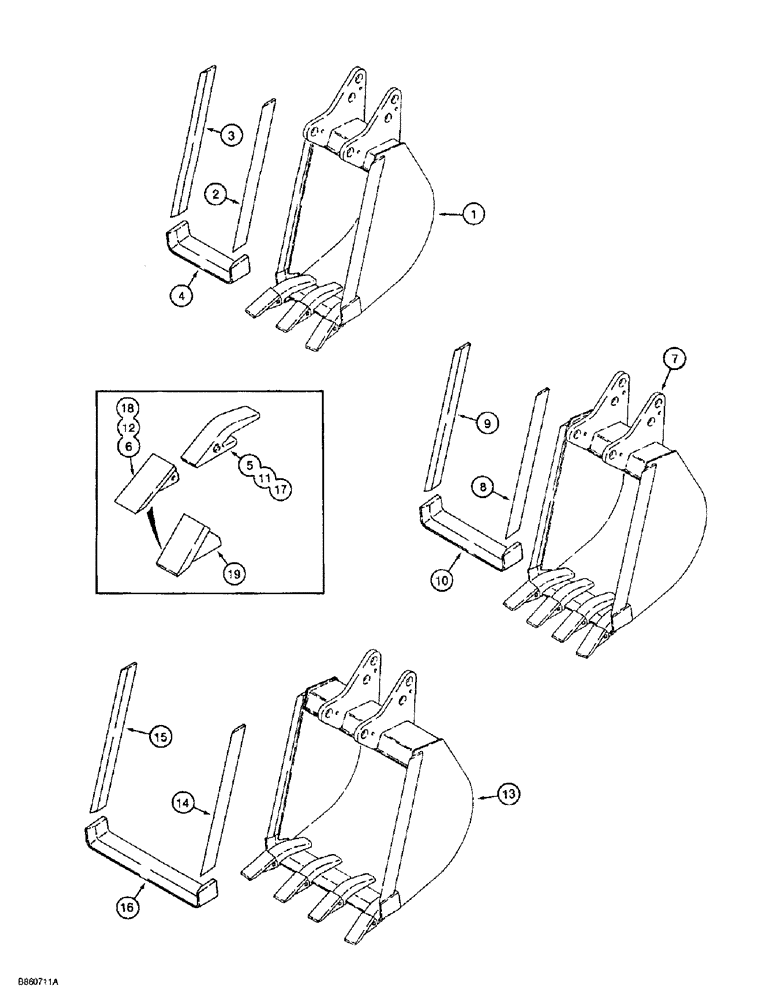

Схема запчастей Case 860 - (9-036) - BACKHOE BUCKETS (09) - CHASSIS/ATTACHMENTS
7
3
10
12
4
15
16
6
18
14
9
13
19
5
1
2
11
8
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H672513

BUCKET

ASSEMBLY - backhoe, 344 mm (13 inch), machinery item, order from Machinery Price List, Includes: Ref. 2 - 6

1шт.

2

H433581

EDGE

PLATE - cutting edge, bucket, right-hand side

1шт.

3

H433584

EDGE

PLATE - cutting edge, bucket, left-hand side

1шт.

H672510

EDGE

PLATE ASSEMBLY - cutting edge, bucket, center, includes bucket teeth, Includes: Ref. 4 - 6

1шт.

Due to special weld techniques used in assembly of shanks to center cutting edge plate, bucket teeth shanks must be welded to center cutting edge plate at factory.

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - cutting edge, bicket, center, order H672510 plate assembly, Includes: Ref. 5 and 6

1шт.

Due to special weld techniques used in assembly of shanks to center cutting edge plate, bucket teeth shanks must be welded to center cutting edge plate at factory.

1шт.

5

NSS

NOT SOLD SEPARAT

SHANK - bucket tooth

1шт.

Due to special weld techniques used in assembly of shanks to center cutting edge plate, bucket teeth shanks must be welded to center cutting edge plate at factory.

1шт.

6

D27748

TOOTH

POINT - bucket tooth, standard

1шт.

7

H672514

BUCKET

ASSEMBLY - backhoe, 458 mm (18 inch), machinery item, order from Machinery Price List, Includes: Ref. 8 - 12

1шт.

8

H433581

EDGE

PLATE - cutting edge, bucket, right-hand side

1шт.

9

H433584

EDGE

PLATE - cutting edge, bucket, left-hand side

1шт.

H672511

EDGE

PLATE ASSEMBLY - cutting edge, bucket, center, includes bucket teeth, Includes: Ref. 10 - 12

1шт.

Due to special weld techniques used in assembly of shanks to center cutting edge plate, bucket teeth shanks must be welded to center cutting edge plate at factory.

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE - cutting edge, bucket, center, order H672511 plate assembly, Includes: Ref. 11 and 12

1шт.

Due to special weld techniques used in assembly of shanks to center cutting edge plate, bucket teeth shanks must be welded to center cutting edge plate at factory.

1шт.

11

NSS

NOT SOLD SEPARAT

SHANK - bucket tooth

1шт.

Due to special weld techniques used in assembly of shanks to center cutting edge plate, bucket teeth shanks must be welded to center cutting edge plate at factory.

1шт.

12

D27748

TOOTH

POINT - bucket tooth, standard

1шт.

13

H672515

BUCKET

ASSEMBLY - backhoe, 610 mm (24 inch), machinery item, order from Machinery Price list, Includes: Ref. 14 - 18

1шт.

14

H433581

EDGE

PLATE - cutting edge, bucket, right-hand side

1шт.

15

H433584

EDGE

PLATE - cutting edge, bucket, left-hand side

1шт.

H672512

EDGE

PLATE ASSEMBLY - cutting edge, bucket, center, includes bucket teeth, Includes: Ref. 16 - 18

1шт.

Due to special weld techniques used in assembly of shanks to center cutting edge plate, bucket teeth shanks must be welded to center cutting edge plate at factory.

1шт.

16

NSS

NOT SOLD SEPARAT

PLATE - cutting edge, bucket, center, order H672512 plate assembly, Includes: Ref. 17 and 18

1шт.

Due to special weld techniques used in assembly of shanks to center cutting edge plate, bucket teeth shanks must be welded to center cutting edge plate at factory.

1шт.

17

NSS

NOT SOLD SEPARAT

SHANK - bucket tooth

1шт.

Due to special weld techniques used in assembly of shanks to center cutting edge plate, bucket teeth shanks must be welded to center cutting edge plate at factory.

1шт.

18

D27748

TOOTH

POINT - bucket tooth, standard

1шт.

19

D36720

TOOTH

POINT - bucket tooth, heavy duty service option

1шт.
