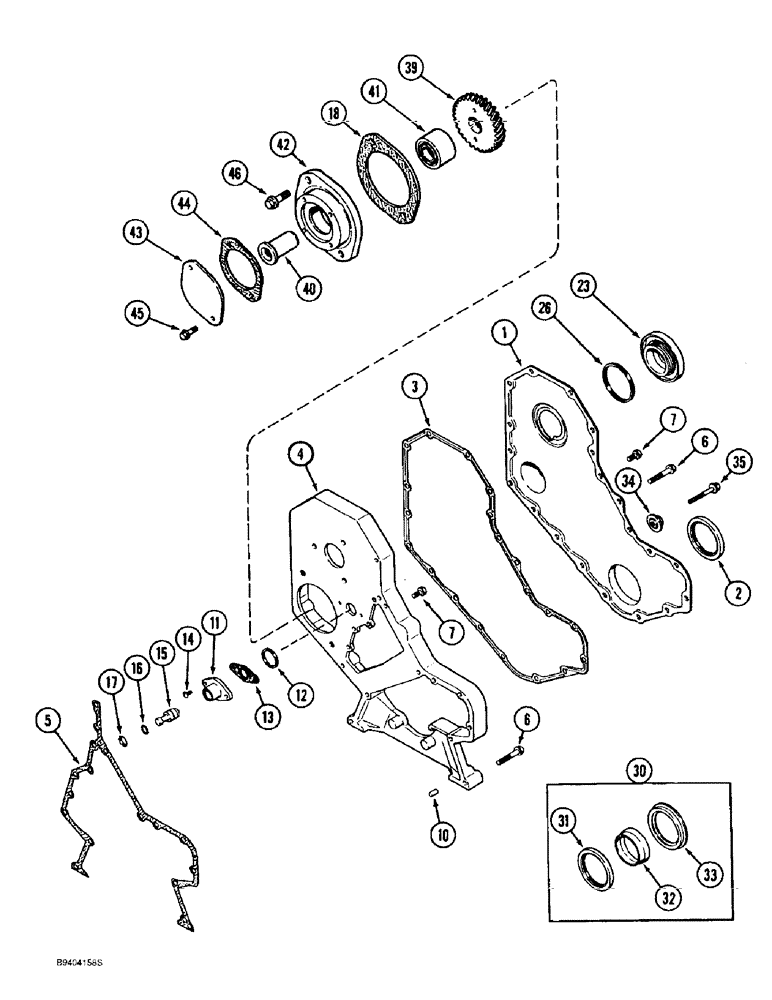

Запчасти Case 860 (2-18) - FRONT GEAR COVER - 4T-390 ENGINE (02) - ENGINE

1

J903794

COVER

- gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front, order item 30, J904353 seal kit below

1шт.

3

J914385

GASKET,1.02mm Thk

- front cover

1шт.

4

J920758

HOUSING

- timing gear, replaces J920518 housing

1шт.

5

J916131

GASKET

- gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm

10шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

16шт.

10

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long, locating

2шт.

11

J919683

HOUSING

- timing pin

1шт.

12

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing

1шт.

13

J905595

GASKET

- timing pin housing

1шт.

14

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

15

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

16

J913994

O-RING

- sealing

1шт.

17

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

18

A77507

GASKET

- pump adapter

1шт.

23

J903463

PLUG,M63 x 5

- front access

1шт.

26

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover

1шт.

30

J904353

GASKET KIT

KIT - oil seal, crankshaft front, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

34

J912772

RETAINER

- bolt

1шт.

35

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 60 mm

1шт.

39

J902595

GEAR

- drive

1шт.

40

J923243

SHAFT

- accessory drive

1шт.

41

J902601

BEARING, ROLLER,35mm ID x 64mm OD x 37mm W

BEARING - pump roller

1шт.

42

J923239

FLANGE

ADAPTER - hydraulic pump

1шт.

43

A77509

PLATE

- cover

1шт.

44

J919601

GASKET

- access cover plate, replaces A77441 and J913192 gasket

1шт.

45

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.

46

854-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 35 mm, class 10.9

2шт.
