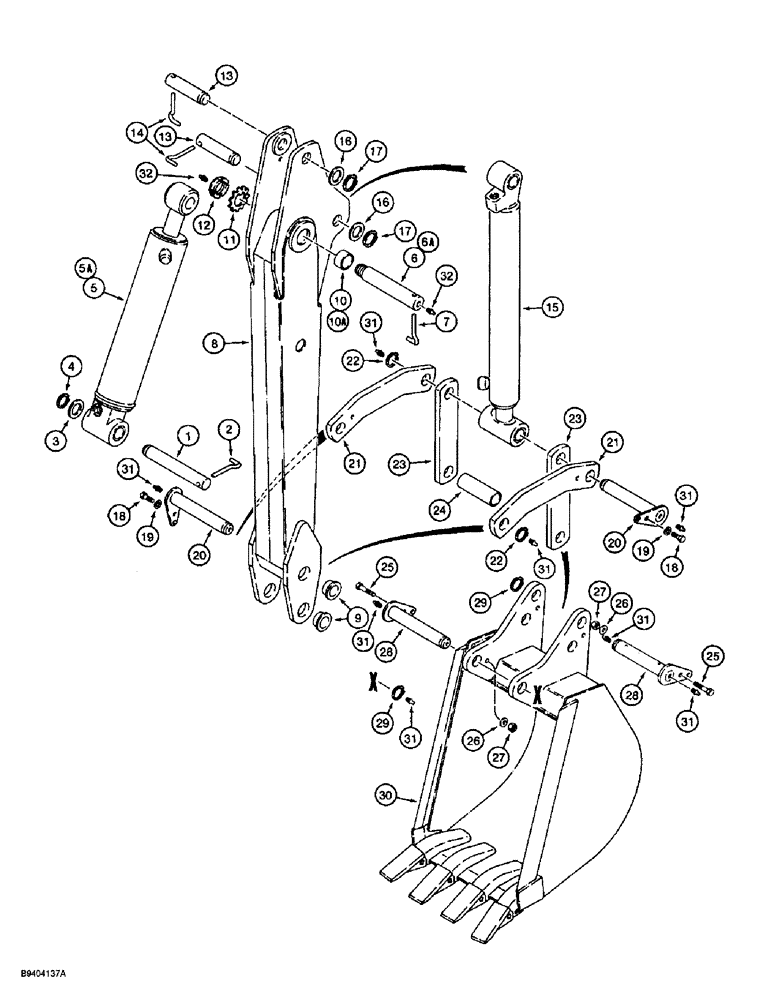

Запчасти Case 860 (9-034) - BACKHOE DIPPER AND BUCKET (09) - CHASSIS/ATTACHMENTS

1

H433742

PIN

- dipper, Serial Range: cylinder-boom

1шт.

2

H433937

LARGE PIN,12.7mm OD

LOCK - pin

1шт.

3

H61028

WASHER

- flat, special, used as shim

1шт.

4

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

1шт.

5

H672569

CYLINDER

ASSEMBLY - 102 (4) ID x 441 mm (17-3/8 inch) stroke, backhoe dipper, parts list Figure 8-058, if used

1шт.

5a

138234A1

CYLINDER

ASSEMBLY - 102 (4) ID x 441 mm (17-3/8 inch) stroke, backhoe dipper, parts list Figure 8-059A, if used

1шт.

6

H437193

PIN

- dipper to boom, used with Ref. 10, H436238 Teflon fabric lined bushing

1шт.

See Figure 9-026 for hardened steel bushings and hardened pins kit, 113324A1. This kit is available for customers who want to replace the Teflon fabric lined bushings. It is recommended that all bushings be replaced at the same time.

1шт.

6a

H437962

PIN

- dipper to boom, used with Ref. 10A, 113138A1 hardened steel bushing

1шт.

7

H433937

LARGE PIN,12.7mm OD

LOCK - pin

1шт.

113177A1

BOOM

DIPPER ASSEMBLY - bachoe, replaces H672260 dipper assembly, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

DIPPER - backhoe

1шт.

9

H433624

BUSHING,38.23mm ID x 64mm OD x 25.5mm L

- dipper, at bucket end

4шт.

10

H436238

BUSHING

- Teflon fabric lined, dipper, at boom end, used with Ref. 6, H437193 pin

2шт.

See Figure 9-026 for hardened steel bushings and hardened pins kit, 113324A1. This kit is available for customers who want to replace the Teflon fabric lined bushings. It is recommended that all bushings be replaced at the same time.

1шт.

10a

113138A1

BUSHING

- hardened steel, dipper, at boom end, used with Ref. 6A, H437962 pin

1шт.

11

192-309

BEARING WASHER,Type W-09

WASHER - bearing lock, SAE No. W-09

1шт.

12

131-1036

BEARING LOCK NUT,Bearing, 1.7717" Bore

NUT - bearing lock, N-09

1шт.

13

H433743

PIN

- dipper to bucket and dipper cylinders

2шт.

14

H433937

LARGE PIN,12.7mm OD

LOCK - pin

2шт.

15

H672570

CYLINDER

ASSEMBLY - 75 (3) ID x 654 mm (25-3/4 inch) stroke, backhoe bucket, parts list Figure 8-060

1шт.

16

H61028

WASHER

- flat, special, used as shim

1шт.

17

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

19

492-11038

LOCK WASHER,3/8"

2шт.

20

H672559

PIN

- bucket links

2шт.

21

H433745

LINK

- curved, bucket

2шт.

22

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

23

H433746

LINK

- straight, bucket

2шт.

24

H433749

SPACER

- bucket links

1шт.

25

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

26

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

27

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

28

H672559

PIN

- dipper to bucket and bucket link

2шт.

29

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

30

REF

INSTRUCTION

BUCKET ASSEMBLY - backhoe, see Figure 9-036 for bucket options

1шт.

31

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

8шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.
