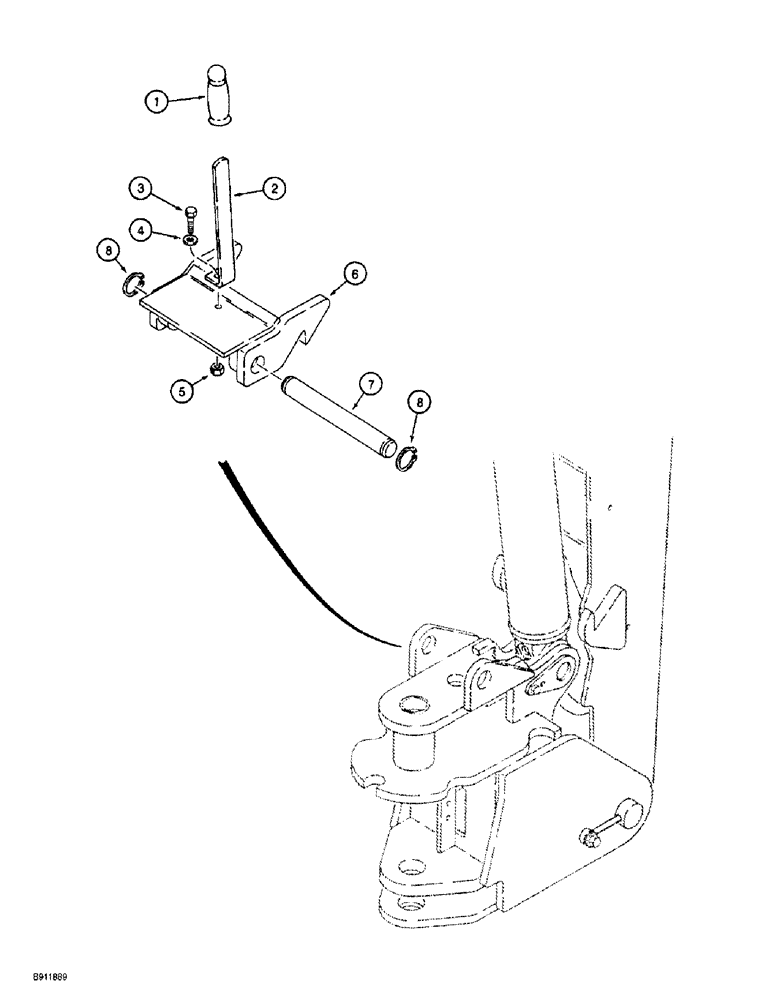

Запчасти Case 860 (9-032) - BACKHOE BOOM LATCH (09) - CHASSIS/ATTACHMENTS

1

H33332

GRIP

- handle, boom latch control

1шт.

2

H436021

GRIP

HANDLE - control

1шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

4

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

5

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

1шт.

6

H672500

LATCH

- retaining, backhoe boom

1шт.

7

H434125

PIN

- boom latch to swing tower

1шт.

8

D25279

SNAP RING,M35, Int

RING - snap, boom latch pin retaining

2шт.
