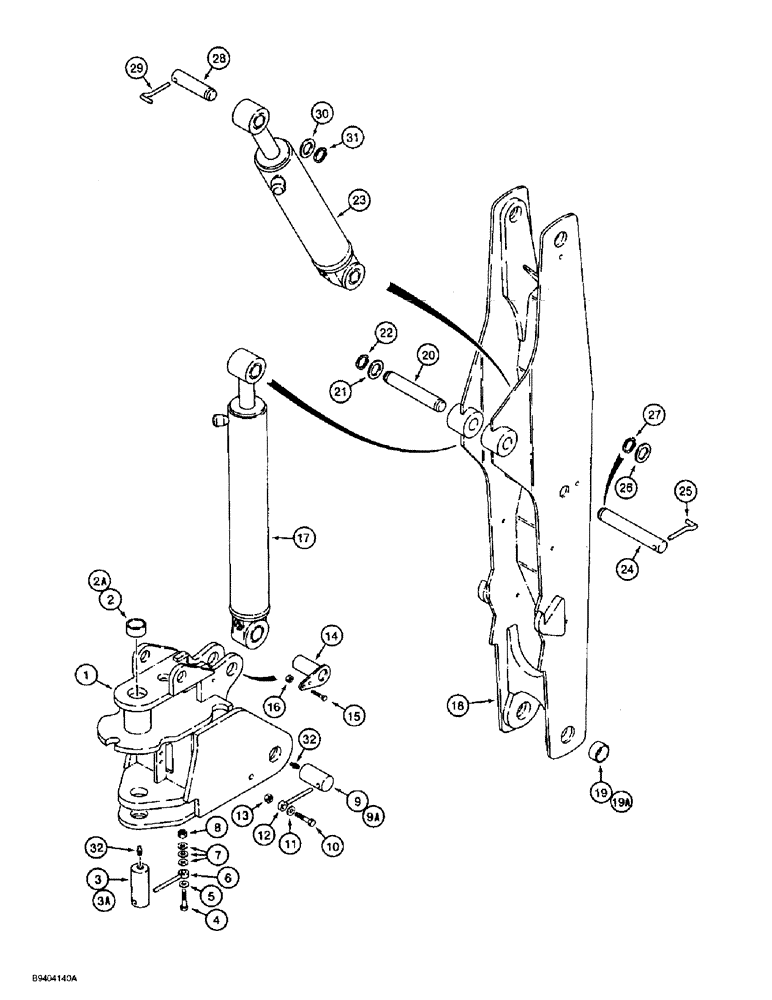

Запчасти Case 860 (9-030) - BACKHOE SWING TOWER AND BOOM (09) - CHASSIS/ATTACHMENTS

1

113171A1

CASING

TOWER - swing, backhoe, replaces H672215 tower

1шт.

2

H433644

BUSHING

- Teflon flabric lined, swing tower, used with Ref. 3, H437191 pin

1шт.

See Figure 9-026 for hardened steel bushings and hardened pins kit, 113324A1. This kit is available for customers who want to replace the Teflon fabric lined bushings. It is recommended that all bushings be replaced at the same time.

1шт.

2a

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- 2 x 2-1/2 x 2 inch, hardened steel, swing tower, used with Ref. 3A, H437959 pin

1шт.

3

H437191

PIN

- swing tower to mounting frame, used with Ref. 2, H433644 Teflon fabric lined bushing

1шт.

See Figure 9-026 for hardened steel bushings and hardened pins kit, 113324A1. This kit is available for customers who want to replace the Teflon fabric lined bushings. It is recommended that all bushings be replaced at the same time.

1шт.

3a

H437959

PIN

- swing tower to mounting frame, used with Ref. 2A, D33023 hardened steel bushing

1шт.

4

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

1шт.

5

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

6

L109671

ROD

RETAINER - pin

1шт.

7

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

3шт.

8

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self locking, 1/2 inch NC

1шт.

9

H437194

PIN

- swing tower to boom, used with Ref. 19, H433623 Teflon fabric lined bushing

2шт.

See Figure 9-026 for hardened steel bushings and hardened pins kit, 113324A1. This kit is available for customers who want to replace the Teflon fabric lined bushings. It is recommended that all bushings be replaced at the same time.

1шт.

9a

H437961

PIN

- swing tower to boom, used with Ref. 19A, D38943 hardened steel bushing

2шт.

10

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

11

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

12

L109671

ROD

RETAINER - pin

2шт.

13

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self locking, 1/2 inch NC

2шт.

14

H672354

PIN

- boom cylinder to swing tower

1шт.

15

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

PIN - boom cylinder to swing tower

1шт.

16

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

17

H672568

CYLINDER

NUT - hex, self locking, 3/8 inch NC

1шт.

18

113170A1

BOOM

CYLINDER ASSEMBLY - 102 (4) ID x 622 mm (24-1/2 inch) stroke, backhoe boom, parts list Figure 8-056

1шт.

19

H433623

BUSHING

- Teflon fabric lined, backhoe boom end, used with Ref. 9, H437914 pin

2шт.

See Figure 9-026 for hardened steel bushings and hardened pins kit, 113324A1. This kit is available for customers who want to replace the Teflon fabric lined bushings. It is recommended that all bushings be replaced at the same time.

1шт.

19a

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- 28 mm (1-1/8 inch) long, hardened steel, backhoe boom end, used with Ref. 9A, H437961 pin

2шт.

20

H433739

PIN

- boom, Serial Range: cylinder-boom

1шт.

21

H61028

WASHER

RING - snap, boom cylinder pin retaining

1шт.

22

D25279

SNAP RING,M35, Int

CYLINDER ASSEMBLY - backhoe dipper, see Figures 8-058 and 8-059A for correct assembly and components

2шт.

23

REF

INSTRUCTION

CYLINDER ASSEMBLY - backhoe dipper, see Figures 8-058 and 8-059A for correct assembly and components

1шт.

24

H433742

PIN

- dipper, Serial Range: cylinder-boom

1шт.

25

H433937

LARGE PIN,12.7mm OD

LOCK - pin

1шт.

26

H61028

WASHER

- flat, special, used as shim

1шт.

27

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

1шт.

28

H433743

PIN

- dipper, Serial Range: cylinder-dipper

1шт.

29

H433937

LARGE PIN,12.7mm OD

LOCK - pin

1шт.

30

H61028

WASHER

- flat, special, used as shim

1шт.

31

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

1шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.
