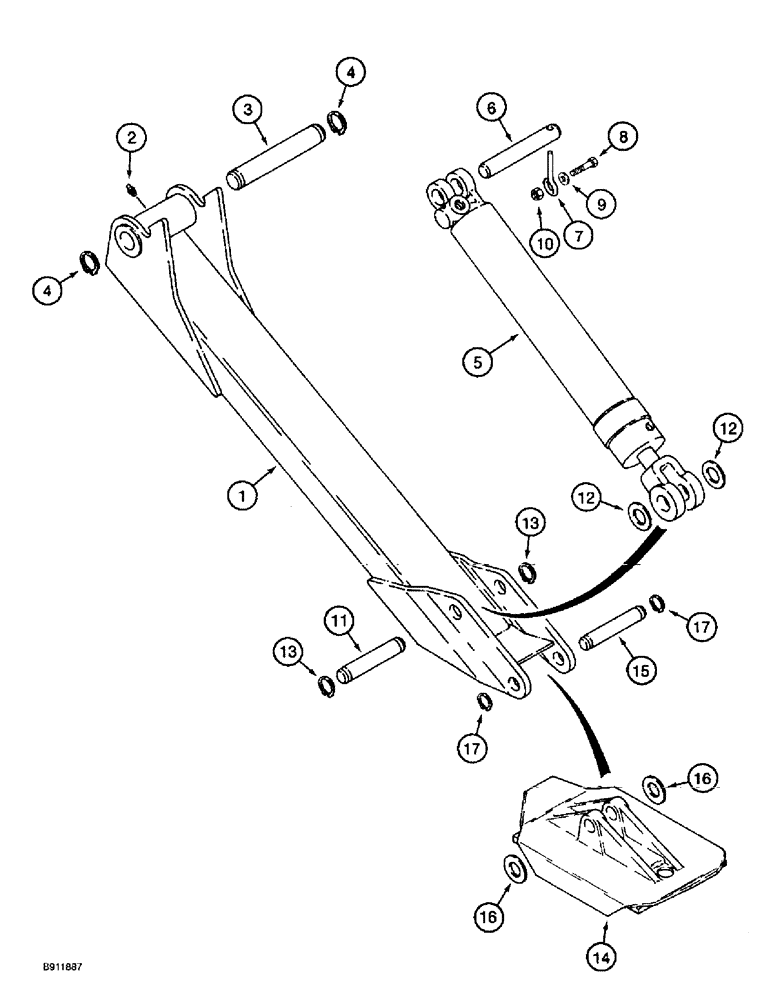

Запчасти Case 860 (9-028) - BACKHOE STABILIZERS (09) - CHASSIS/ATTACHMENTS

1

H672227

STABILIZER

LEG - backhoe stabilizer

2шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

3

H433739

PIN

- stabilizer leg to backhoe mounting frame

2шт.

4

D25279

SNAP RING,M35, Int

RING - snap, stabilizer leg pin

4шт.

5

101646A1

CYLINDER

ASSEMBLY - 95 (3-3/4) ID x 406 mm (16 inch) stroke, backhoe stabilizer, parts list Figure 8-052

2шт.

6

H433744

PIN

- pivot, stabilizer cylinder to backhoe mounting frame

2шт.

7

H313981

PIN

- retaining, stabilizer cylinder pin mounting

2шт.

8

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

10

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

11

H434380

PIN

- stasbilizer cylinder rod end to stabilizer leg

2шт.

12

495-21138

WASHER,1 1/4"

- flat, 1-3/8 x 3 x 5/32 inch

1шт.

13

103-16125

SNAP RING,#125, Ext

Ring, Snap, , Cylinder to stabilizer leg pin #125, Ext

4шт.

14

H434430

LARGE PLATE

PAD - stabilizer cast

2шт.

15

H434379

PIN,28.63mm OD x 151mm L

- stabilizer, Serial Range: leg-plate

2шт.

16

495-21138

WASHER,1 1/4"

- flat, 1-3/8 x 3 x 5/32 inch

4шт.

17

100-16112

SNAP RING,#112, Ext

Ring, Snap, , Stabilizer plate pin #112, Ext

4шт.
