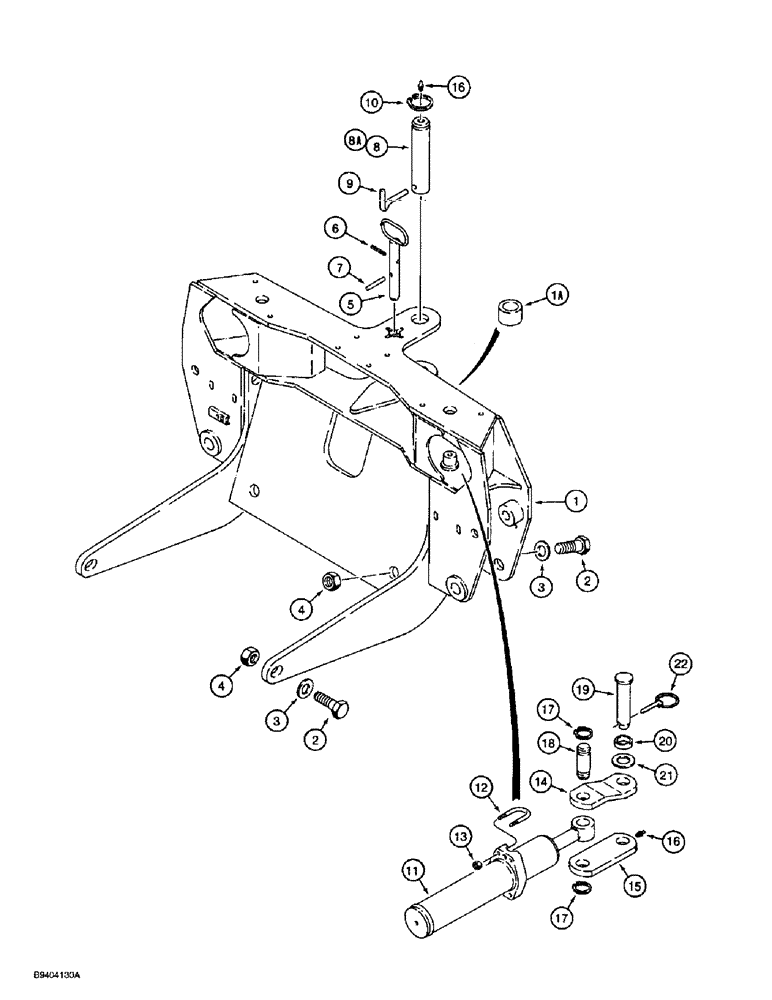

Запчасти Case 860 (9-026) - BACKHOE MOUNTING FRAME (09) - CHASSIS/ATTACHMENTS

1

113174A1

FRAME

- backhoe mounting, replaces H672240, Includes: Ref. 1A

1шт.

1a

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- 2 x 2-1/2 x 2 inch, bottom plate of frame

1шт.

2

413-2056

BOLT,Hex, 1-1/4" - 7 x 3-1/2", Gr 5

- hex, 1-1/4 NC x 3-1/2 inch

4шт.

3

D43536

WASHER

- flat, special, 1-1/4 inch, hardened

4шт.

4

230-41120

LOCK NUT,1 1/4"-7, GA

NUT - hex, self-locking, 1-1/4 inch NC

4шт.

5

H672507

PIN

- locking, special, swing tower, Includes: Ref. 6

1шт.

6

38-12028

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, , included with swing tower locking pin 5/16" x 1 3/4", Slotted

1шт.

7

38-12044

LOCK PIN,5/16" x 2 3/4", Slotted

Pin, 5/16" x 2 3/4", Slotted

1шт.

8

H437192

PIN

- mounting frame to swing tower, upper, used with Teflon fabric lined bushing, item 2, H433644 shown on figure 9-030

1шт.

8a

H437960

PIN

- mounting frame to swing tower, upper, used with hardened steel bushing, item 2A, D33023 shown on figure 9-030

1шт.

9

H433937

LARGE PIN,12.7mm OD

LOCK - pin

1шт.

10

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Upper mounting frame pin #200, Ext

1шт.

11

H672571

CYLINDER ASSY.

CYLINDER ASSEMBLY - 83 (3-1/4) ID x 341 mm (13-7/16 inch) stroke, backhoe swing, parts list figure 8-054

2шт.

12

H110270

HARDWARE

U-BOLT - special, 5/16 inch NC

4шт.

13

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

8шт.

14

H111583

DRAG LINK

LINK - offset, swing cylinder

2шт.

15

H111575

LINK

- straight, swing cylinder

2шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

3шт.

17

D25279

SNAP RING,M35, Int

RING - snap, swing cylinder pin

4шт.

18

H434262

PIN

- swing, Serial Range: cylinder-link

2шт.

19

H76851

AXLE PIN

PIN - clevis, swing cylinder link to swing tower

2шт.

20

H434263

SPACER

- link

2шт.

21

H61028

WASHER

- flat, special, used as shim

1шт.

22

D33805

PIN

- locking, link pin

2шт.

113324A1

KIT

- hardened steel bushings and hardened pins, Includes: Ref. 23 - 29

1шт.

This kit is available for customers who want to replace the Teflon fabric lined bushings, item 8 above. It is recommended that all bushings be replaced at the same time.

1шт.

23

H437967

BUSHING

- pivot, swing tower, not shown

2шт.

24

H437968

BUSHING

- pivot, dipper, not shown

1шт.

25

H437969

BUSHING

- pivot, boom, not shown

2шт.

26

H437959

PIN

- pivot, swing tower to mounting frame, lower, not shown

1шт.

27

H437960

PIN

- pivot, mounting frame to swing tower, upper, not shown

1шт.

28

H437961

PIN

- pivot, swing tower to boom, not shown

2шт.

29

H437962

PIN

- pivot, dipper to boom, not shown

1шт.
