(9-022) - BACKHOE SEAT ASSEMBLY

Запчасти Case 860 (9-022) - BACKHOE SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

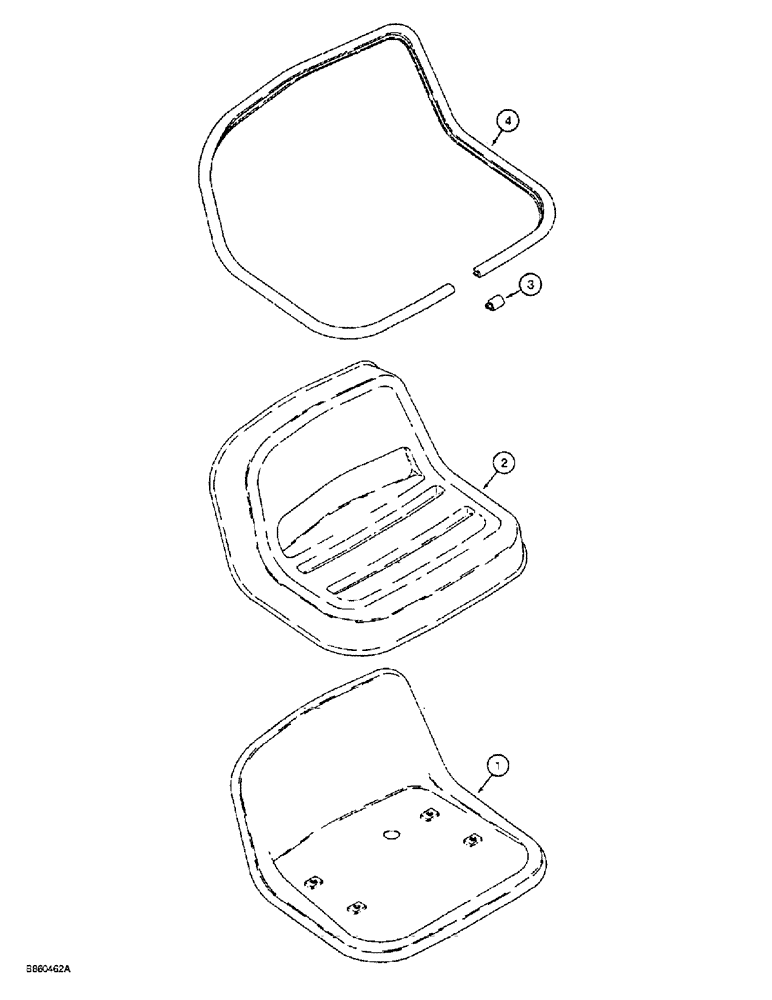

Схема запчастей Case 860 - (9-022) - BACKHOE SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS
3
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

179332A1

SEAT

ASSEMBLY - operator's, gray, no seat kit available for service, order 179332A1 seat, Includes: Ref. 1 - 4

1шт.

H436146

SEAT

ASSEMBLY - operator's, brown, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

PAN - seat

1шт.

N13696

SET

KIT - seat, no longer available, order H436146 seat assembly, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

CUSHION - seat

1шт.

3

NSS

NOT SOLD SEPARAT

CLIP - seat trim

1шт.

4

NSS

NOT SOLD SEPARAT

TRIM - seat

1шт.
