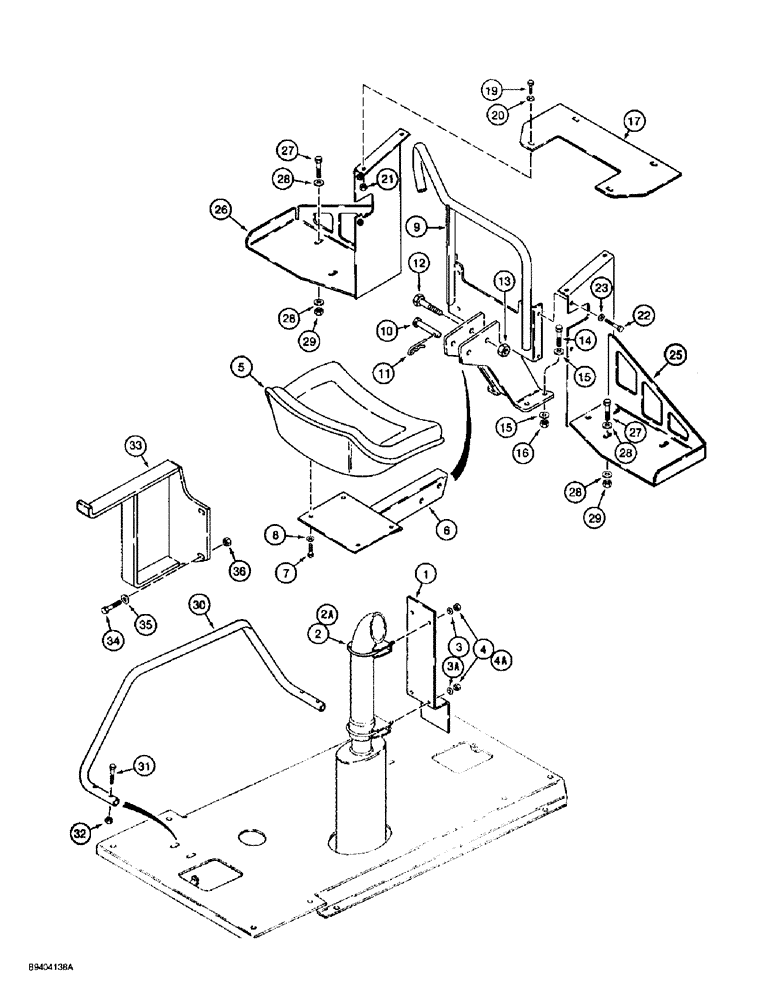

Запчасти Case 860 (9-020) - BACKHOE PLATFORM - CONSOLE, FOOT GUARDS, AND HANDRAIL (09) - CHASSIS/ATTACHMENTS

1

H434212

SHIELD

- muffler, used on backhoe units

1шт.

2

A13240

CLAMP,2-5/8" ID

- two piece, includes hardware, muffler exhaust extension to shield, if used

1шт.

2a

H434145

CLAMP

- muffler exhaust extension to shield, includes hardware, if used

1шт.

3

H426775

WASHER

- flat, special, hardened, used in addition to existing clamp hardware, used with item 2, A13240 clamp, if used

4шт.

3a

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened, Used in addition to existing clamp hardware, used with item 2A, H434145 clamp, if used

4шт.

4

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, , Used in addition to existing clamp hardware, used with item 2, A13240 clamp, if used 5/16"-18, GC

4шт.

4a

232-4116

NUT,3/8"-16, GC

NUT, LOCK, , Used in addition to existing clamp hardware, used with item 2A, H434145 clamp, if used 3/8"-16, GC

4шт.

5

H436146

SEAT

ASSEMBLY - operator's, brown, parts list Figure 9-022

1шт.

6

H673473

LARGE PLATE

BRACKET - seat mounting

1шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

8

H426775

WASHER

- flat, special, hardened

4шт.

9

H672346

CONSOLE

- backhoe control valve and seat mounting

1шт.

10

S10839

CLEVIS PIN,19.05mm OD x 95.25mm L

PIN, CLEVIS, 3/4 x 3-1/2 inch, Special

1шт.

11

136-164

COTTER PIN,Int, 5/16" x .120"

PIN - cotter, hair, 5/16 x 2-25/32 inch

1шт.

12

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- hex, 3/4 NC x 3-3/4 inch

1шт.

13

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4 inch NC

1шт.

14

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

15

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

8шт.

16

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

17

H436285

COVER

- backhoe control valve

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

20

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

21

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

23

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

25

H673481

GUARD

- foot, right-hand

1шт.

26

H673480

PROTECTOR

GUARD - foot, left-hand

1шт.

27

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

28

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

12шт.

29

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

6шт.

30

H434213

RAIL

HANDRAIL - backhoe operator\Qs seat access assist

1шт.

31

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

4шт.

32

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

33

H672540

STEP

- backhoe operator\Qs seat access, if used

1шт.

34

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

If used Hex, 1/2"-13 x 1 3/4", G5

2шт.

35

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, If used

2шт.

36

232-4118

NUT,1/2"-13, GC

NUT, LOCK, , If used 1/2"-13, GC

2шт.
