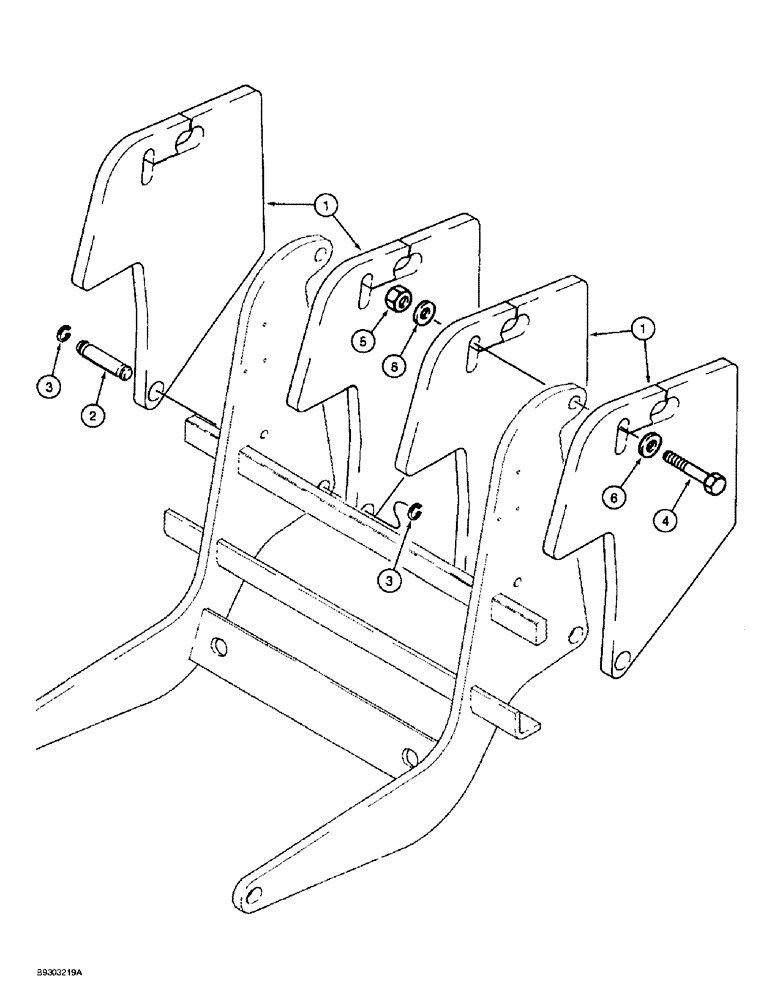

Запчасти Case 860 (9-019A) - TRENCHER COUNTERWEIGHTS - ADDITIONAL WEIGHTS FOR QUAD OR OTHER OPTION (09) - CHASSIS/ATTACHMENTS

1

H439400

WEIGHT

- auxiliary

4шт.

2

H434262

PIN

- reel carrier frame to counterweight frame

2шт.

3

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

4шт.

4

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

- hex, 1 NC x 4-1/2 inch

2шт.

5

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

6

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

4шт.
