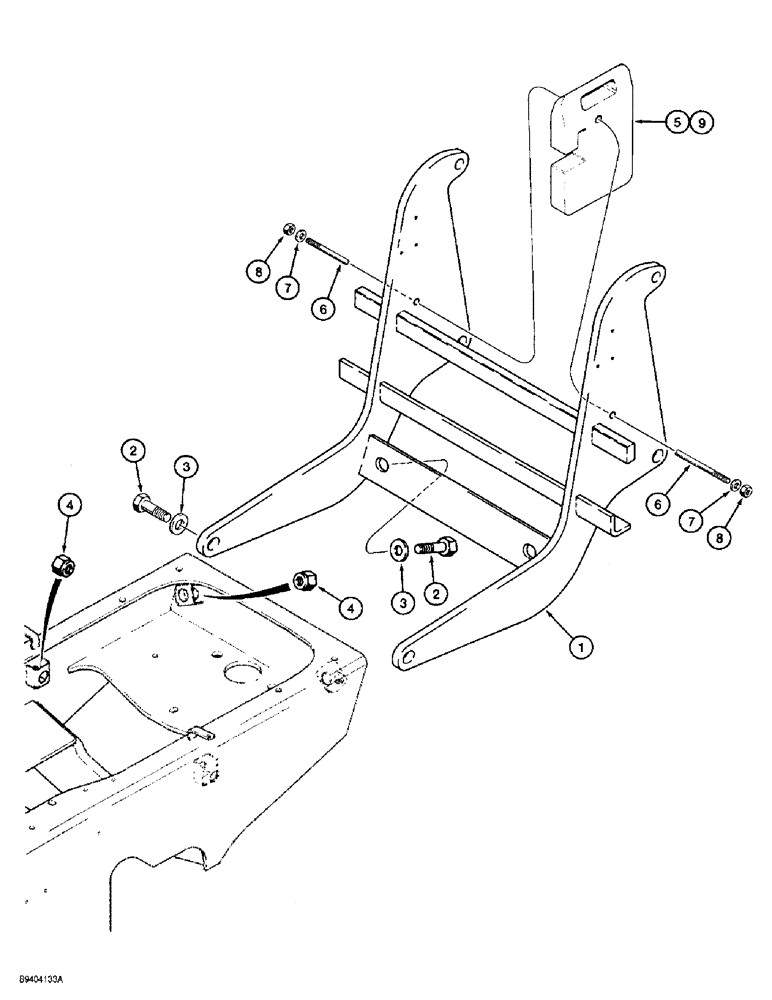

Запчасти Case 860 (9-018) - FRONT COUNTERWEIGHT USED ON MODELS WITH QUAD OPTION W/O BACKHOE W/REEL CARRIER (09) - CHASSIS/ATTACHMENTS

1

H674971

CHASSIS

FRAME

1шт.

2

413-2056

BOLT,Hex, 1-1/4" - 7 x 3-1/2", Gr 5

- hex, 1-1/4 NC x 3-1/2 inch

4шт.

Part of Weight Kit P/N H939388

1шт.

3

D43536

WASHER

- flat, special, 1-1/4 inch, hardened

4шт.

Part of Weight Kit P/N H939388

1шт.

4

232-41120

LOCK NUT,1 1/4"-7, GC

NUT, LOCK, 1 1/4"-7, GC

4шт.

Part of Weight Kit P/N H939388

1шт.

5

109364A1

WEIGHT

COUNTERWEIGHT - 60.3 lbs (27.4 kg), front

3шт.

Part of Weight Kit P/N H939388

1шт.

6

104279A1

ROD

- counterweight retaining

1шт.

Part of Weight Kit P/N H939388

1шт.

7

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

Part of Weight Kit P/N H939388

1шт.

8

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

Part of Weight Kit P/N H939388

1шт.

9

109364A1

WEIGHT

COUNTERWEIGHT - 60.3 lbs (27.4 kg), front

6шт.

Part of Weight Kit P/N H939223

1шт.

H939388

BRACKET

KIT - weight attach, Machinery item, order from Machinery Price List, Includes: Ref. 2 - 8

1шт.

H939223

KIT

- weight, includes six 109364A1 counterweights and installation instructions. Machinery item, order from Machinery Price List

1шт.
