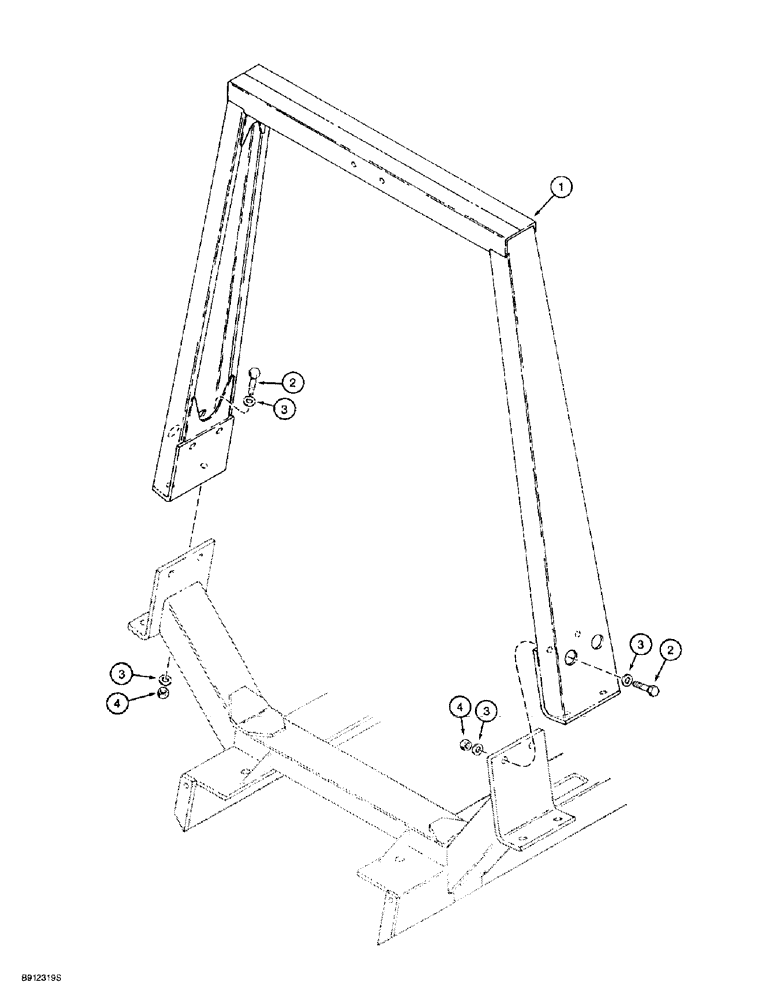

Запчасти Case 860 (9-014) - ROLL OVER PROTECTIVE STRUCTURE (09) - CHASSIS/ATTACHMENTS

H939171

KIT

- ROPS, 2 post, brown, machinery item, order from Machinery Price LIst, Includes: Ref. 1 - 4

1шт.

189616A1

ATTACHMENT

KIT - ROPS, 2 post, gray, machinery item, order from Machinery Price List, Includes: Ref. 1 - 4

1шт.

1

H673241

ATTACHMENT

ROPS - 2 post, brown, order H939171 ROPS kit

1шт.

1

H673526

ROPS - 2 post, gray, order 189616A1 ROPS kit

1шт.

2

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, grade 8

8шт.

3

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, special, hardened

16шт.

4

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

8шт.
