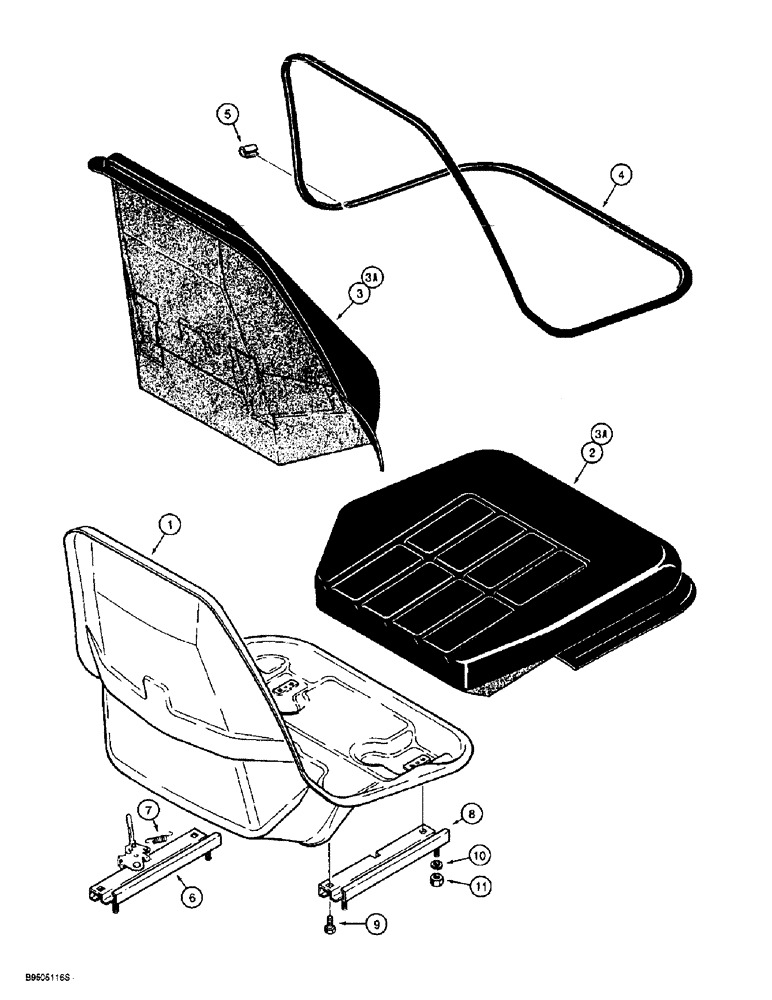

Запчасти Case 860 (9-012) - OPERATORS SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

139699A1

SEAT

ASSEMBLY - operators, gray vinyl, molded shell with hole for interlock switch, Includes: Ref. 1 - 11

1шт.

D124515

SEAT ASSY.

SEAT ASSEMBLY - operators, brown vinyl, molded shell, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

N8462

CUSHION

KIT - seat cushion, includes N7802 clip kit, brown vinyl, D124515 brown seat

1шт.

3

N8461

CUSHION

KIT - backrest cushion, includes N7802 clip kit, brown vinyl, D124515 brown seat

1шт.

3a

323312A1

CUSHION ASSY.

SET - cushion, seat and backrest, 139699A1 gray seat, not shown

1шт.

4

176924A1

SET OF PARTS

TRIM - edging, gray, Serial Range: cushion-shell

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

6

N13606

ADJUSTER

SLIDE - seat, left-hand side, adjustment side, D125415 seat

1шт.

7

L35503

SPRING

- slide

1шт.

7a

220666A1

ADJUSTER

SLIDE - seat, left hand side, adjustment side, 139699A1 seat, not shown

1шт.

8

N13607

ADJUSTER

SLIDE - seat, right hand side, D124515 seat

1шт.

8a

220665A1

ADJUSTER

SLIDE - seat, right hand side, 139699A1 seat, not shown

1шт.

9

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- 5/16 x 1/2

4шт.

9a

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

- machine, pan Phillips, 5/16 NC x 3/4 inch, 139699A1 seat, slides to seat shell, not shown

4шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

425-105

NUT,5/16"-18, G5

4шт.

345-44

ADHESIVE

- spray can, 3M No. 74, 23 ounce

1шт.

N7802

CLIP

KIT - includes item 5 clip above plus 6 additional narrow clips

1шт.
