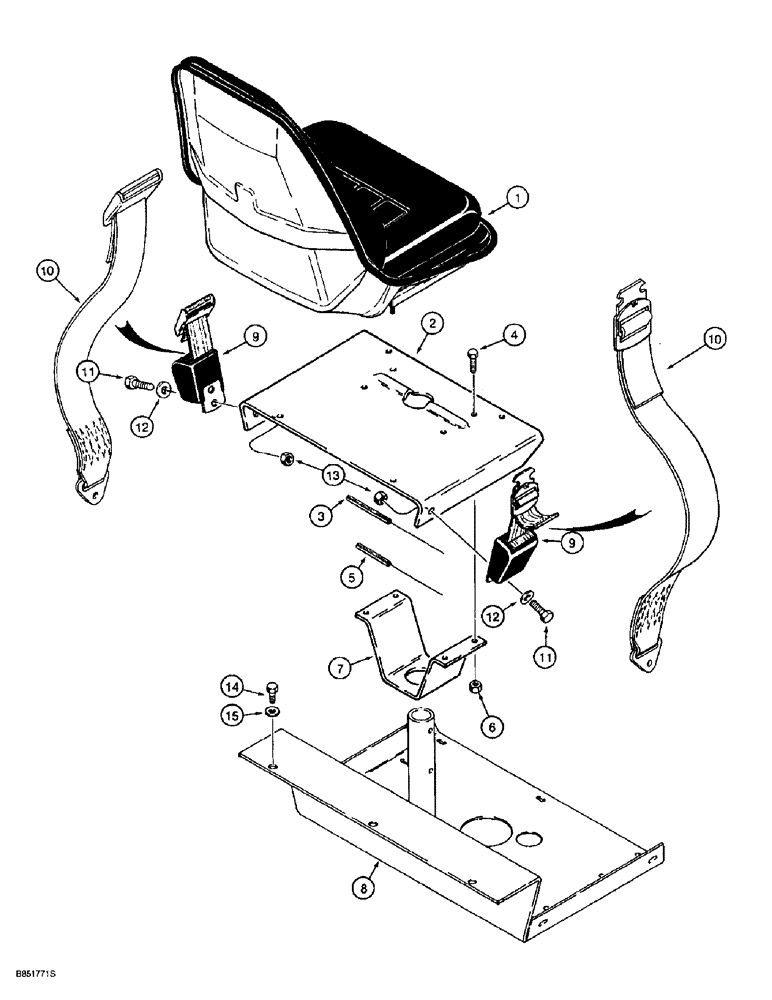

Запчасти Case 860 (9-010) - OPERATORS SEAT AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SEAT ASSEMBLY - operators, molded shell, parts list Figure 9-012

1шт.

2

H336222

PLATE

SUPPORT - seat assembly

1шт.

3

38-12464

LOCK PIN,3/8" x 4", Slotted

Pin, 3/8" x 4", Slotted

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

5

38-12444

LOCK PIN,3/8" x 2 3/4", Slotted

Pin, 3/8" x 2 3/4", Slotted

1шт.

6

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

7

H336180

LARGE PLATE

BRACKET - seat support

1шт.

8

106775A2

PLATE

- mounting, with seat post

1шт.

9

H651646

SAFETY BELT ,45.70 mm W

Retractable, If used 45.70 mm W

1шт.

10

H594564

SAFETY BELT ,3.00" W

Non-retractable, If used 3.00" W

1шт.

11

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

- hex, 7/16 NF x 1-1/4 inch

2шт.

12

H277566

WASHER

- flat, special

2шт.

13

232-4617

LOCK NUT,7/16"-20, GC

NUT, LOCK, 7/16"-20, GC

2шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

14шт.

15

H426775

WASHER

- flat, special, hardened

14шт.
