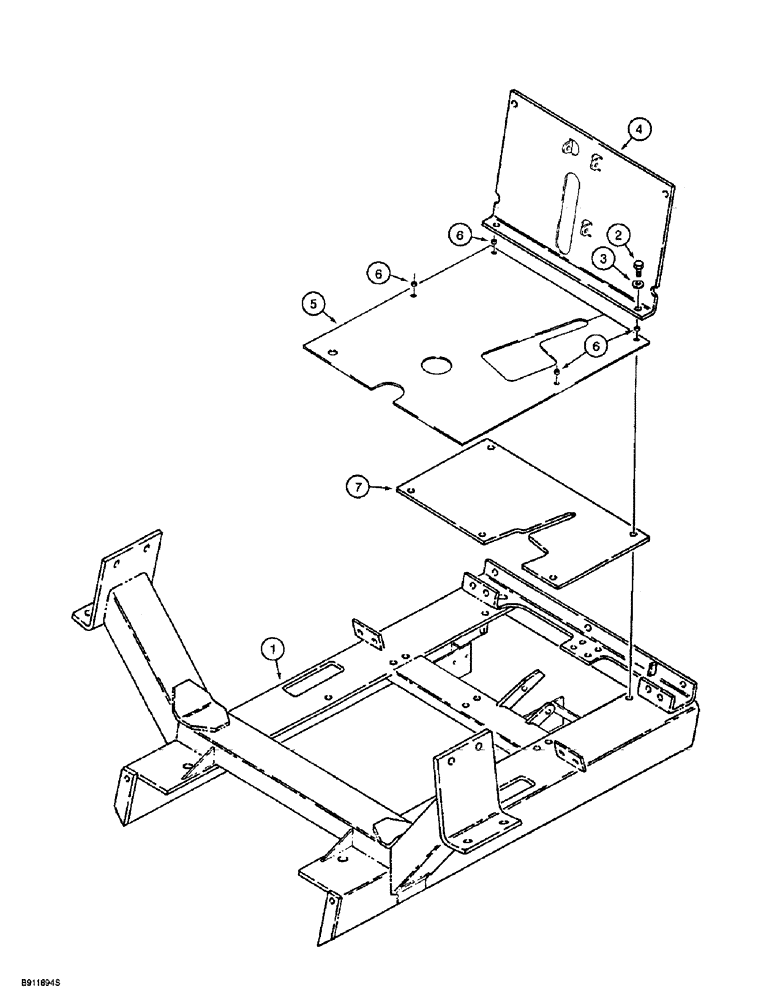

Запчасти Case 860 (9-008) - FLOORMAT (09) - CHASSIS/ATTACHMENTS

1

H675055

PLATFORM

- operators compartment, see Figure 9-004 for mounting

1шт.

2

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

4шт.

3

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

4шт.

4

H439199

LARGE PLATE

PANEL - steering tower, see Figure 9-004 for mounting

1шт.

5

H434690

FLOOR MAT

FLOORMAT - operators compartment, brown

1шт.

5

180602A1

FLOOR MAT

FLOORMAT - operators compartment, gray

1шт.

6

D38524

SPACER

- clamp, 5/16 inch long, replaces D36488

4шт.

7

H403972

FLOOR

PLATE - floor, front, see Figure 9-004 for mounting

1шт.
