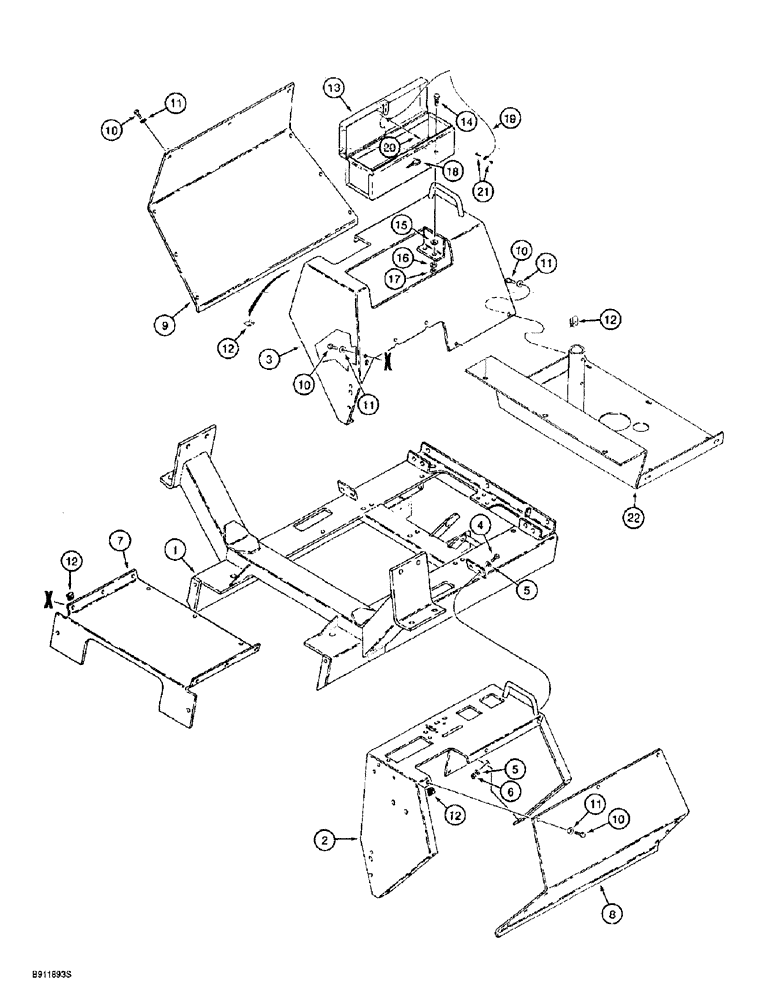

Запчасти Case 860 (9-006) - OPERATORS COMPARTMENT - CONSOLES AND TOOL BOX (09) - CHASSIS/ATTACHMENTS

1

H675055

PLATFORM

- operators compartment

1шт.

2

H675007

CONSOLE

- right-hand, attachment and steering controls

1шт.

3

H672355

CONSOLE

- left-hand, tool box mounting

1шт.

4

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

5

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

8шт.

6

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

7

H433305

PLATE

- floor, rear, see page 9-5 for mounting hardware

1шт.

8

H432096

PLATE

- right-hand console

1шт.

9

H432195

PLATE

- left-hand console

1шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

28шт.

11

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

28шт.

12

H346650

NUT

- U-type, 5/16 inch NC

28шт.

13

D124090

BOX, TOOL

BOX - tool, tractor, has internal clip for operators manual, brown, if used

1шт.

13

195309A1

BOX, TOOL

BOX - tool, tractor, has internal clip for operators manual, gray, if used

1шт.

14

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

15

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch

1шт.

16

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch

4шт.

17

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

4шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

19

R46465

CABLE,36mm L

CORD - manual retaining

1шт.

20

151-522

RIVET,Pop, 3/16" x .575"

- break mandrel, 3/16 x 9/16 inch

1шт.

21

NSS

NOT SOLD SEPARAT

POST - manual retaining, 3/16'x 3/4'long, buy locally

1шт.

22

106775A1

PLATE ASSY.

PLATE - mounting, with seat post, with seat post, see Figure 9-010 for mounting bracket and hardware

1шт.
