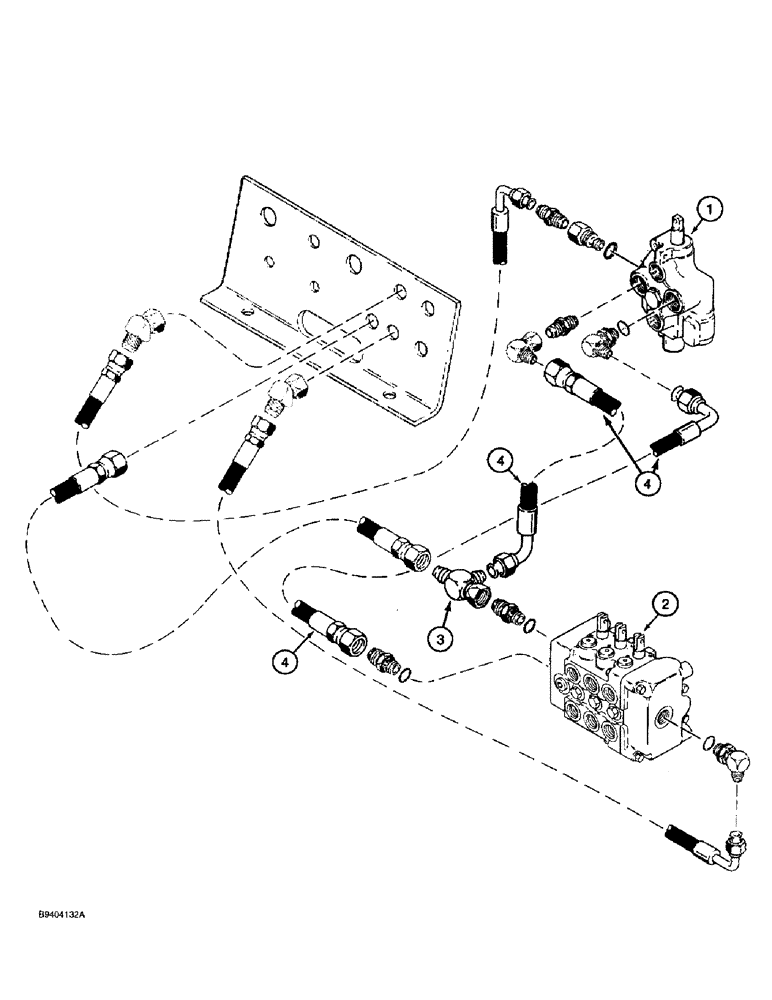

Запчасти Case 860 (8-129E) - CRUMBER HYDRAULIC CIRCUIT FOR REVERSE QUAD OPTION (08) - HYDRAULICS

1

H674465

VALVE

ASSEMBLY - auxiliary control, see Figure 8-129A for mounting parts

1шт.

2

H674318

VALVE

ASSEMBLY - control, plow, see Figure 8-112 for mounting parts

1шт.

3

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel, 7/8-14 inch flare branch x flare x adj straight thread

1шт.

4

108665A1

HOSE ASSY.

HOSE - 475 mm (18-3/4 inch) long, supply and return

2шт.

108677A1

ATTACHMENT

KIT - hydraulic crumber attach, for reverse quad kit, Includes: Ref. 3 and 4

1шт.
