Запчасти Case 860 (8-129C) - CRUMBER HYDRAULIC CIRCUIT FOR QUAD OPTIONS (08) - HYDRAULICS

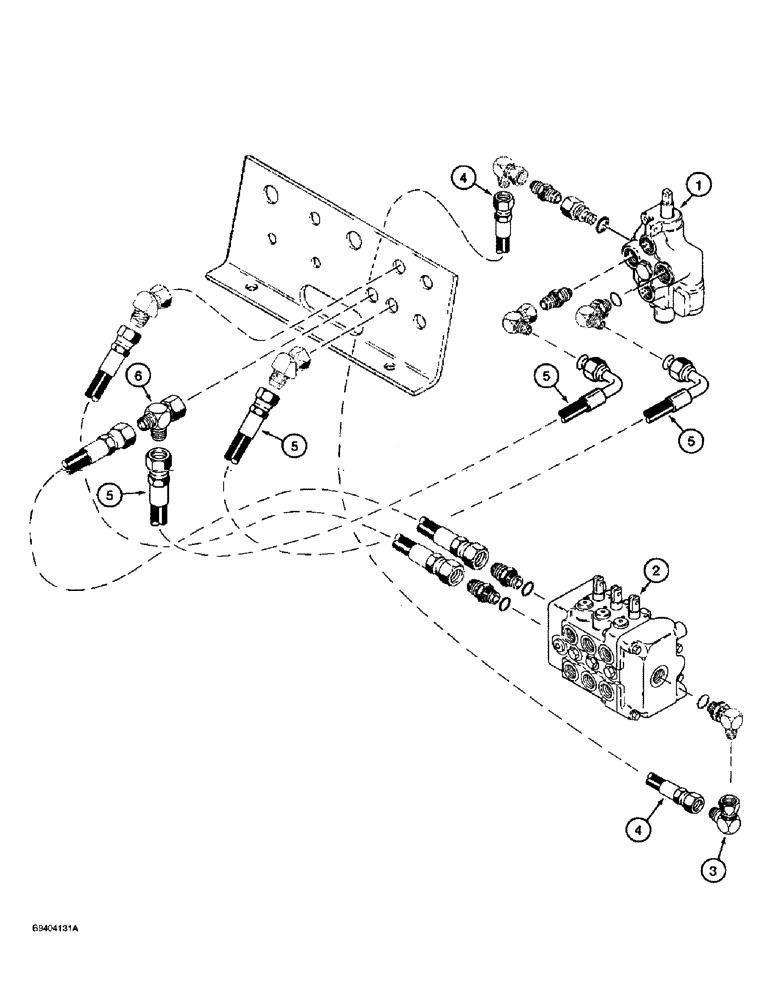

Схема запчастей Case 860 - (8-129C) - CRUMBER HYDRAULIC CIRCUIT FOR QUAD OPTIONS (08) - HYDRAULICS
4
6
5
5
3
4
1
2
5
5

Артикул

Название

Примечание

Количество

1

H674465

VALVE

ASSEMBLY - auxiliary control, see Figure 8-129A for mounting parts

1шт.

2

H674318

VALVE

ASSEMBLY - control, plow, see Figure 8-112 for mounting parts

1шт.

3

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

1шт.

4

108421A1

HOSE ASSY.

HOSE - 955 mm (37-5/8 inch) long, power beyond

1шт.

5

108664A1

HOSE ASSY.

HOSE - 770 mm (30-5/16 inch) long, supply and return

2шт.

6

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

- 1-1/16-12 inch flare branch x flare x swivel

1шт.

108676A1

ATTACHMENT

KIT - hydraulic crumber attach, for quad and offset trencher kits, Includes: Ref. 3 - 6, items 3 and 6 are not used with the offset trencher kit

1шт.

Выбрано товаров: 7
