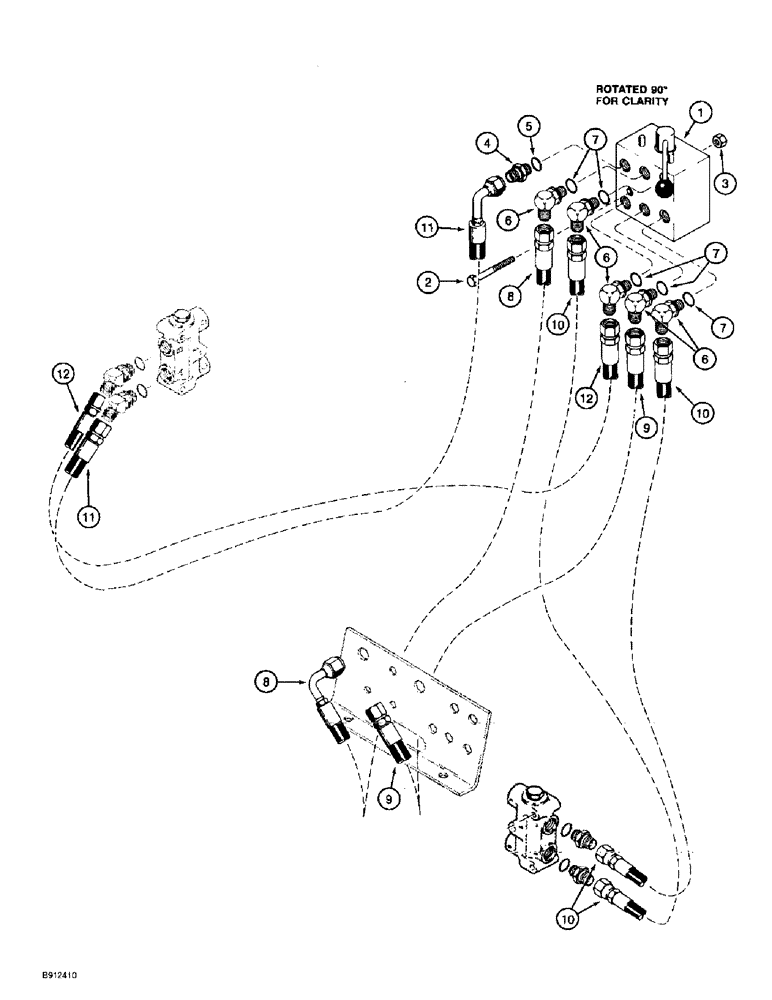

Запчасти Case 860 (8-126) - SELECTOR VALVE HYDRAULIC CIRCUIT FOR QUAD WITH REEL CARRIER (08) - HYDRAULICS

1

H672689

VALVE

ASSEMBLY - selector, reel carrier/trencher lift, parts list Figure 8-128

1шт.

2

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, upper left-hand port of selector valve, Incl. Ref. 4

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 7

5шт.

8

104410A1

HOSE

- 820 mm (32-1/4 inch) long, left-hand bulkhead fitting to selector valve, center upper port

1шт.

9

104409A1

HOSE

- 820 mm (32-1/4 inch) long, right-hand bulkhead fitting to selector valve, center lower port

1шт.

10

104408A1

HOSE

- 1750 mm (68-7/8 inch) long, selector valve, right-hand ports to trencher boom lift lockout valve, see Figure 8-072 for continuation of circuit

2шт.

11

104355A1

HOSE

- 4420 mm (174 inch) long, selector valve upper left-hand port to reel carrier lockout valve "A"port, see Figure 8-062 for reel carrier lift hydraulic circuit

1шт.

12

104356A1

HOSE

- 4420 mm (174 inch) long, selector valve lower left-hand port to reel carrier lockout valve "B" port, see Figure 8-062 for reel carrier lift hydraulic circuit

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
